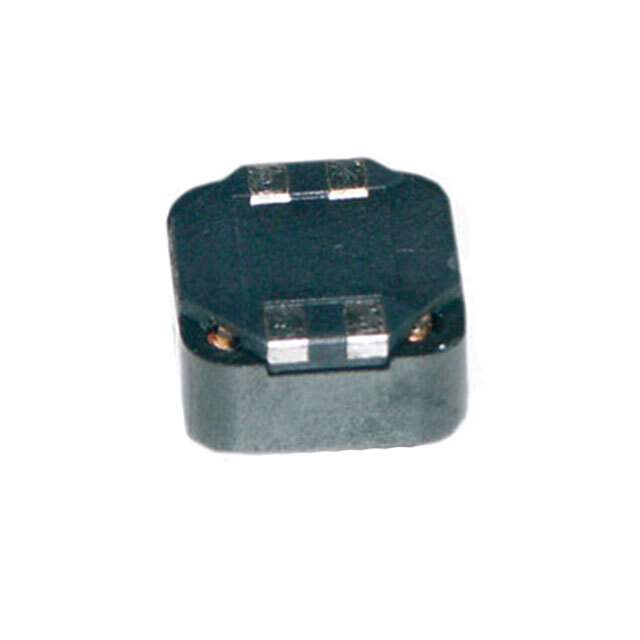

744873101

Get a Quote

Part No	744873101
Manufacturer	Wurth Electronics Inc
Catalog	Arrays, Signal Transformers
Description	INDUCT ARRAY 2 COIL 100UH SMD / Shielded 2 Coil Inductor Array 400 µH Inductance - Connected in Series 100 µH Inductance - Connected in Parallel 255mOhm Max DC Resistance (DCR) - Parallel 1.38 A Nonstandard
Datasheet	744873101 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Arrays, Signal Transformers
Mfr	Wurth Electronics Inc
Series	WE-DD
Package	Tape & Reel
Number of Coils	2
Inductance - Connected In Parallel	100 µH
Inductance - Connected In Series	400 µH
Tolerance	±20%
Current Rating - Parallel	1.38 A
Current Rating - Series	690 mA
Current Saturation - Parallel	2.2 A
Current Saturation - Series	1.1 A
DC Resistance (DCR) - Parallel	255mOhm Max
DC Resistance (DCR) - Series	-
Shielding	Shielded
Ratings	-
Temperature Range - Operating	-40°C ~ 125°C
Mounting Type	Surface Mount
Package / Case	Nonstandard
Size / Dimension	0.492" L x 0.492" W (12.50mm x 12.50mm)
Height	0.335" (8.50mm)
Moisture Sensitivity Level (MSL)	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.4000
Standard Package	500 pcs
Win Source Part Number	1381133-744873101
Ultra Librarian 3D Model	Ultra Librarian 744873101 CAD Model

Description

The WE-DD series is an array of signal transformers.

Shielded: Yes
Package: Nonstandard
Number of Coils: 2
Inductance (Series): 400 µH
Inductance (Parallel): 100 µH
Current Rating (Series): 690 mA
Current Rating (Parallel): 1.38 A
Current Saturation (Series): 1.1 A
Current Saturation (Parallel): 2.2 A
Operating Temperature: -40°C to 125°C
Mounting Type: Surface Mountable
Size: 0.492" L x 0.492" W (12.50mm x 12.50mm)
