Same model may have multiple batches, images only for reference.

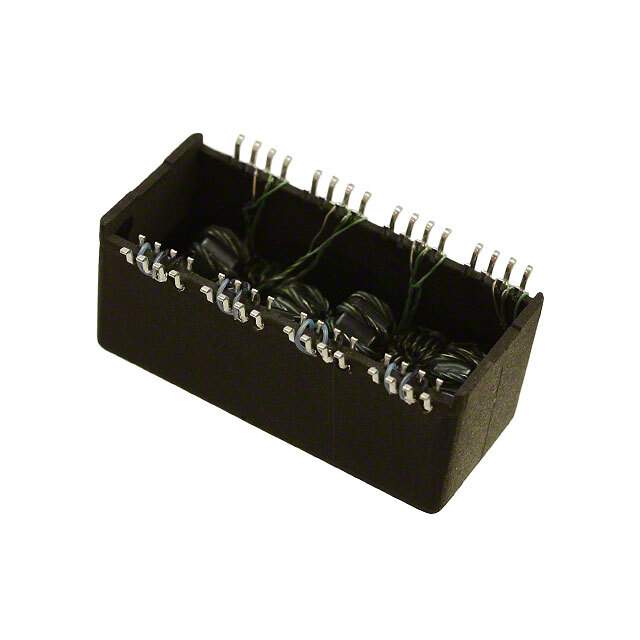

749024012 Real Image
Same model may have multiple batches, images only for reference.

749024012

Part No 749024012
Manufacturer Wurth Electronics Inc
Catalog Pulse Transformers
Description TRANSFORMER WE-LAN 10/100/1000BT / TRANSFORMER
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Würth Elektronik
Packaging Reel
Transformer Type LAN 10/100/1000 Base-T
Inductance 350μH
Mounting Style SMD
Dimension 1.125" L x 0.500" W (28.57mm x 12.70mm)
Height - Seated (Maximum) 0.500" (12.70mm)
Temperature Range - Operating -40°C ~ 85°C
Manufacturer Pack Quantity 175
MSL Level 1 (Unlimited)
Popularity Low
Supply and Demand Status Limited
Win Source Part Number 813482-749024012
Ultra Librarian 3D Model Ultra Librarian 749024012 CAD Model

Description

The Würth Elektronik 749024012 is a LAN 10/100/1000 Base-T transformer with inductance of 350μH.

  • Temperature Range: -40°C to 85°C
  • Dimensions: 1.125" L x 0.500" W (28.57mm x 12.70mm)
  • MSL Level: 1 (Unlimited)
