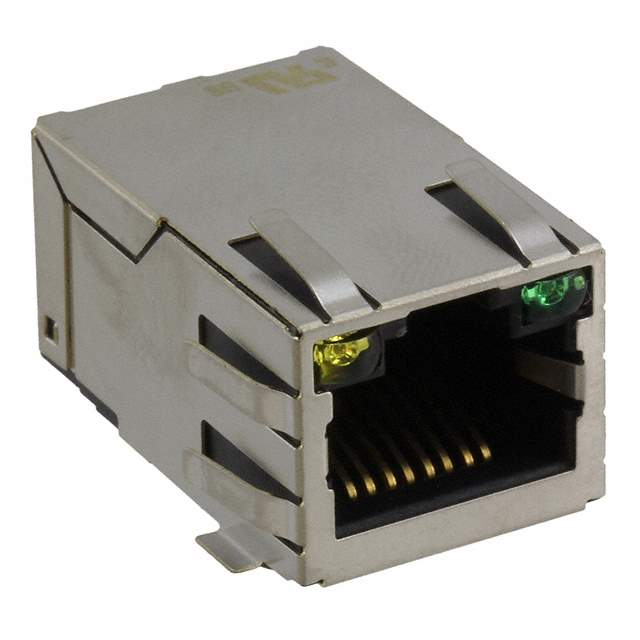

Same model may have multiple batches, images only for reference.

74980111211

Name: 74980111211
Brand: Wurth Electronics Inc
SKU: 857648
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	74980111211
Manufacturer	Wurth Electronics Inc
Catalog	Modular Connectors
Description	CONN JACK 1PORT 100 BASE-T SMD
Datasheet	74980111211 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Modular Connectors - Modular Connector Jacks With Magnetics
Mfr	Wurth Electronics Inc
Series	WE-RJ45 LAN
Package	Tape & Reel
Product Status	Active
Connector Type	RJ45
Number of Ports	1
Number of Rows	1
Applications	10/100 Base-T, AutoMDIX
Mounting Type	Surface Mount
Orientation	90° Angle (Right)
Termination	Solder
Height Above Board	0.536" (13.61mm)
LED Color	Yellow - Green
Number of Cores per Jack	4
Shielding	Shielded, EMI Finger
Features	Board Guide, Solder Retention
Tab Direction	Up
Contact Material	Tin
Contact Finish	Gold
Temperature Range - Operating	-40°C ~ 85°C
Contact Finish Thickness	30.0µin (0.76µm)
Shield Material	Copper Alloy
Housing Material	Thermoplastic
Standard Package	75 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	857648-74980111211
Ultra Librarian 3D Model	Ultra Librarian 74980111211 CAD Model

Alternative Products

Description

The WE-RJ45 LAN is a modular connector jack with magnetics, designed for use in Ethernet applications.

Orientation: 90° angle (right)
Termination: Solder
Height Above Board: 0.536" (13.61mm)
Shielded: with EMI finger
Housing Material: Thermoplastic
LED Color: Yellow-Green
Applications: 10/100 Base-T and AutoMDIX
Current Rating: 1 A
Operating Temperature: -40°C to 85°C
