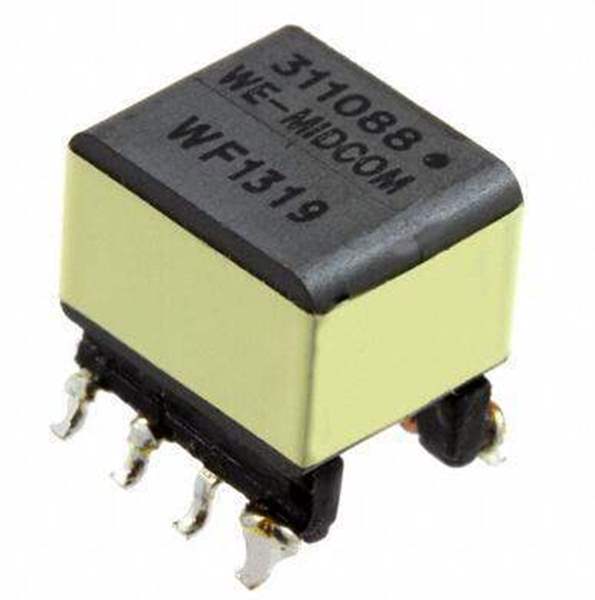

750311088 Würth Elektronik
Same model may have multiple batches, images only for reference.

750311088

Part No 750311088
Manufacturer Wurth Electronics Inc
Catalog Switching Converter, SMPS Transformers
Description XFMR FLYBACK DC/DC CONV 2.7UH SM
Datasheet
750311088 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number Cross
Manufacturer Würth Elektronik
Category Transformers Switching Converter, SMPS Transformers
Product Status Active
Type For DC/DC Converters
Applications Flyback Converters
Voltage - Primary 6 ~ 12.6V
Inductance @ Frequency 2.7µH @ 100kHz
Frequency 391kHz
Operating Temperature -40°C ~ 125°C
Mounting Type Surface Mount
Height - Seated (Max) 0.420" (10.69mm)
Win Source Part Number WS1210698-750311088
Ultra Librarian 3D Model Ultra Librarian 750311088 CAD Model

Description

Flyback Converters For For DC/DC Converters SMPS Transformer 500Vrms Isolation 391kHz Surface Mount
