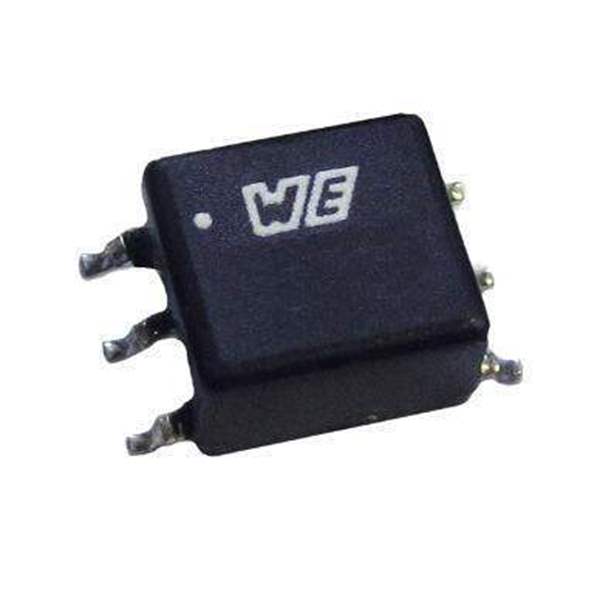

750315227Würth Elektronik
Same model may have multiple batches, images only for reference.

750315227

Part No 750315227
Manufacturer Wurth Electronics Inc
Catalog Switching Converter, SMPS Transformers
Description XFMR FWD P-P SMD
Datasheet
750315227 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number Cross
Manufacturer Würth Elektronik
Category Transformers Switching Converter, SMPS Transformers
Product Status Active
Applications Forward, Push-Pull Converters
Voltage - Primary 3.3V
Operating Temperature -40°C ~ 125°C
Mounting Type Surface Mount
Height - Seated (Max) 0.165" (4.19mm)
Win Source Part Number WS1210717-750315227
Ultra Librarian 3D Model Ultra Librarian 750315227 CAD Model

Description

Forward, Push-Pull Converters For SMPS Transformer Isolation Surface Mount
