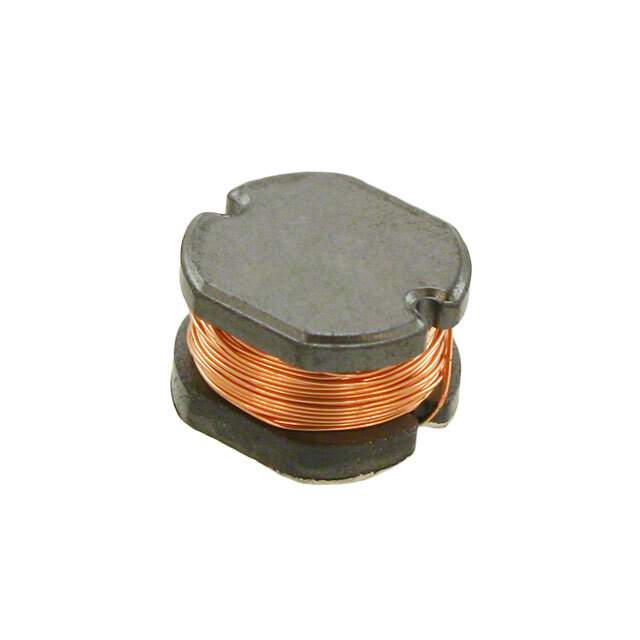

768775322 Real Image
Same model may have multiple batches, images only for reference.

768775322

Part No 768775322
Manufacturer Wurth Electronics Inc
Catalog Fixed Inductors
Description FIXED IND 2.2MH 150MA 7.2 OHM / WE-PD2 High Voltage
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Würth Elektronik
Packaging Reel
Type Wirewound
Material - Core Ferrite
Inductance 2.2mH
Tolerance ±10%
Current Rating (Amps) 150mA
Current - Saturation 200mA
Shielding Unshielded
DC Resistance (DCR) 7.2Ohm Max
Frequency - Self Resonant 1.6MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100kHz
Mounting Style SMD
Manufacturer Package Nonstandard
Dimension 0.307" L x 0.276" W (7.80mm x 7.00mm)
Height - Seated (Maximum) 0.217" (5.50mm)
Manufacturer Pack Quantity 500
MSL Level 1 (Unlimited)
Popularity Low
Supply and Demand Status Limited
Win Source Part Number 812946-768775322
Ultra Librarian 3D Model Ultra Librarian 768775322 CAD Model

Description

The Würth Elektronik 812946-768775322 is a wirewound inductor from Würth Elektronik.

  • Inductance: 2.2mH
  • Tolerance: ±10%
  • Saturation Current: 200mA
  • Self-Resonant Frequency: 1.6MHz
  • DC Resistance (DCR): 7.2Ohm Max
  • Temperature Range: -40°C to 125°C
  • Package: Nonstandard
  • Mounting: SMD
  • Shielding: Unshielded
  • Quantity: 500
