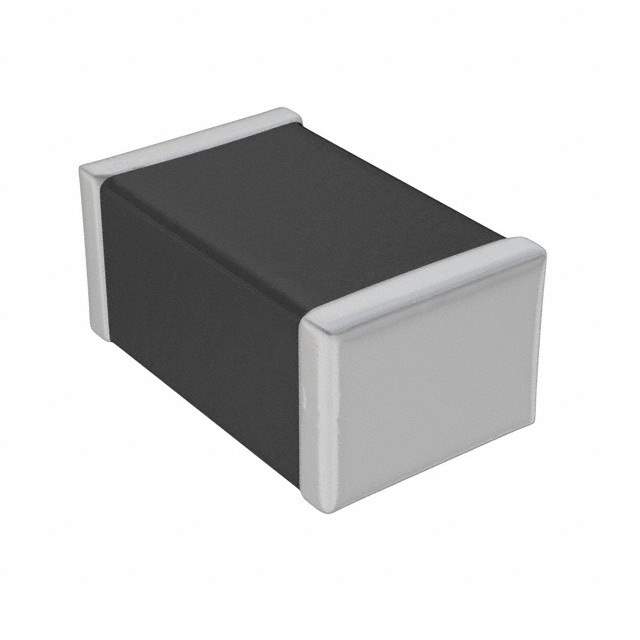

782422511 Real Image
Same model may have multiple batches, images only for reference.

782422511

Part No 782422511
Manufacturer Wurth Electronics Inc
Catalog Ferrite Beads and Chips
Description FERRITE BEAD 510 OHM 0402 1LN / 510 Ohms @ 100 MHz 1 Signal Line Ferrite Bead 0402 (1005 Metric) 200mA 800mOhm
Datasheet
782422511 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Ferrite Beads and Chips
Manufacturer Würth Elektronik
Packaging Reel - TR
Filter Type Signal Line
Number of Lines 1
Impedance @ Frequency 510 Ohms @ 100 MHz
Current Rating (Max) 200mA
DC Resistance (DCR) (Max) 800mOhm
Ratings AEC-Q200
Temperature Range - Operating -55°C ~ 125°C
Case / Package 0402 (1005 Metric)
Mounting Surface Mount
Height (Max) 0.022" (0.55mm)
Size / Dimension 0.039" L x 0.020" W (1.00mm x 0.50mm)
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Other Part Number 732-6688-6,732-6688-2,732-6688-1
Standard Package 10,000
Win Source Part Number 1328080-782422511
Ultra Librarian 3D Model Ultra Librarian 782422511 CAD Model

Description

Würth Elektronik 1328080-782422511 is a high-quality filter designed for use in signal lines.

  • Packaging: Reel - TR
  • Size/Dimension: 0.039" L x 0.020" W (1.00mm x 0.50mm)
  • Current Rating (max): 200mA
  • Standard Package: 10,000
  • Mounting Type: Surface Mount
  • Height (max): 0.022" (0.55mm)
  • Number of Lines: 1
  • Impedance at Frequency: 510 Ohms @ 100 MHz
  • DC Resistance (DCR) (max): 800mOhm
  • Temperature Range for Operating: -55°C ~ 125°C
  • AEC-Q200 Rated: Yes
  • Composition: Thin Film
