Same model may have multiple batches, images only for reference.

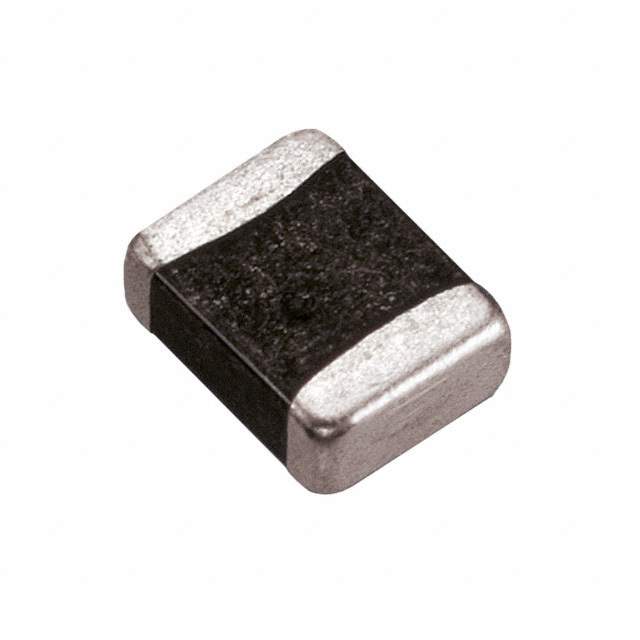

82542350 Real Image
Same model may have multiple batches, images only for reference.

82542350

Part No 82542350
Manufacturer Wurth Electronics Inc
Catalog TVS - Varistors, MOVs
Description HIGH SURGE 2220 SMD VARISTOR | VARISTOR 56V 1.2KA 2220
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Wurth Electronics Inc.
Packaging Reel
Status Obsolete
Maximum AC Volts 35V
Maximum DC Volts 45V
Varistor Voltage (Minimum) 51.52V
Varistor Voltage 56V
Varistor Voltage (Maximum) 60.48V
Current - Surge 1.2kA
Energy 12J
Capacitance at Frequency 4800pF at 1kHz
Temperature Range - Operating -40°C ~ 125°C
Mounting Style SMT, MLCV
Manufacturer Package 2220 (5750 Metric)
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 1133915-82542350
Manufacturer Homepage www.we-online.com
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 82542350 CAD Model

Description

The Wurth Electronics Inc. varistor is a circuit protection device with a varistor voltage of 56V and a maximum DC voltage of 45V.

  • Varistor Voltage: 56V
  • Maximum DC Voltage: 45V
  • Maximum AC Voltage: 35V
  • Energy Rating: 12J
  • Varistor Voltage Range: 51.52V to 60.48V
  • Capacitance: 4800pF @ 1kHz
  • Current Surge: 1.2kA
  • Packaging: Reel
  • Mounting: Surface Mount Technology (SMT)
  • Style: Multi-Layer Ceramic Varistor (MLCV)
  • Temperature Range: -40°C to 125°C
  • Supply and Demand Status: Balanced
