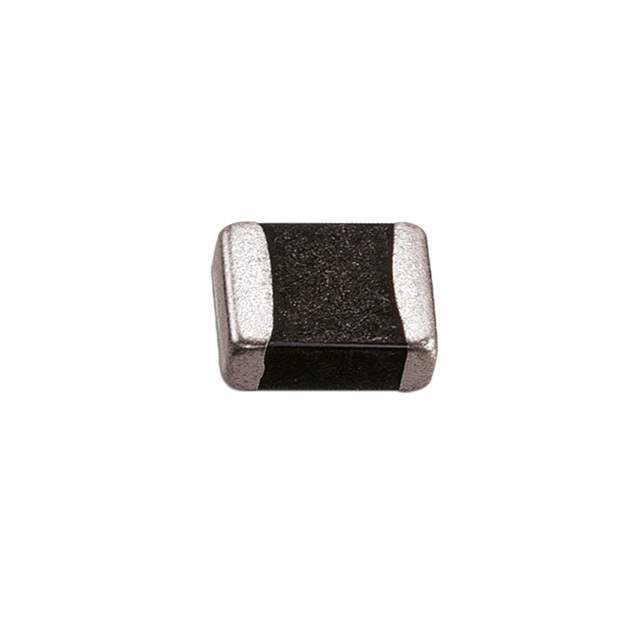

82556140 Real Image
Same model may have multiple batches, images only for reference.

82556140

Part No 82556140
Manufacturer Wurth Electronics Inc
Catalog TVS - Varistors, MOVs
Description 0603 SMD VARISTOR | SMT VARISTOR POWER 0603; 14VRMS;
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Wurth Electronics Inc.
Packaging Reel
Maximum AC Volts 14V
Maximum DC Volts 18V
Varistor Voltage (Minimum) 21.6V
Varistor Voltage 24V
Varistor Voltage (Maximum) 27V
Current - Surge 30A
Energy 0.1J
Capacitance at Frequency 270pF at 1kHz
Temperature Range - Operating -40°C ~ 85°C
Mounting Style SMT, MLCV
Manufacturer Package 0603 (1608 Metric)
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 1133919-82556140
Manufacturer Homepage www.we-online.com
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 82556140 CAD Model

Description

The Wurth Electronics Inc. 544468 is a surface-mount multilayer ceramic varistor designed for circuit protection applications.

  • Type: Multilayer Ceramic Varistor
  • Mounting: Surface Mount
  • Application: Circuit Protection
  • Surge Current (Max): 30A
  • AC Voltage (Max): 14V
  • DC Voltage (Max): 18V
  • Varistor Voltage: 21.6V to 27V
  • Energy Rating: 0.1J
  • Package: 0603 (1608 Metric)
  • Capacitance: 270pF @ 1kHz
  • Operating Temperature: -40°C to 85°C
