Same model may have multiple batches, images only for reference.

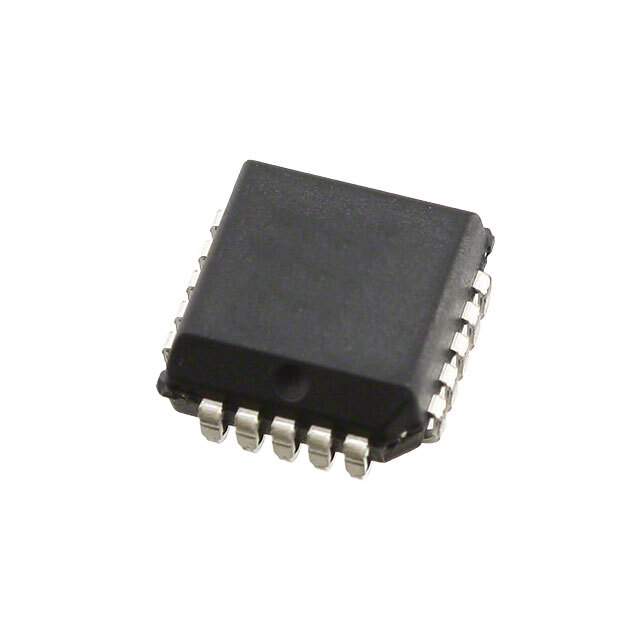

XC18V01PCG20C0100 Real Image
Same model may have multiple batches, images only for reference.

XC18V01PCG20C0100

Part No XC18V01PCG20C0100
Manufacturer Xilinx Inc.
Catalog Memory - Configuration Proms for FPGAs
Description RE-PROGRAMMABLE 1MB PROM
Datasheet
XC18V01PCG20C0100 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Manufacturer Xilinx Inc.
Packaging Reel package
Programmable Type In System Programmable
Memory Size 1Mb
Operating Supply Voltage 3 V ~ 3.6 V
Operating Temperature Range 0°C ~ 70°C
Package 20-LCC (J-Lead)
Manufacturer Package 20-PLCC (9x9)
Win Source Part Number 799565-XC18V01PCG20C0100
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian XC18V01PCG20C0100 CAD Model

Description

The Xilinx XC18V01PCG20C0100 is a medium popularity integrated circuit (IC) that is programmable in-system.

  • Memory Size: 1Mb
  • Operating Supply Voltage: 3V to 3.6V
  • Operating Temperature: 0°C to 70°C
  • Package: 20-LCC (J-Lead)
  • Pin Count: 20
  • Applications: Automotive, Industrial, Commercial
