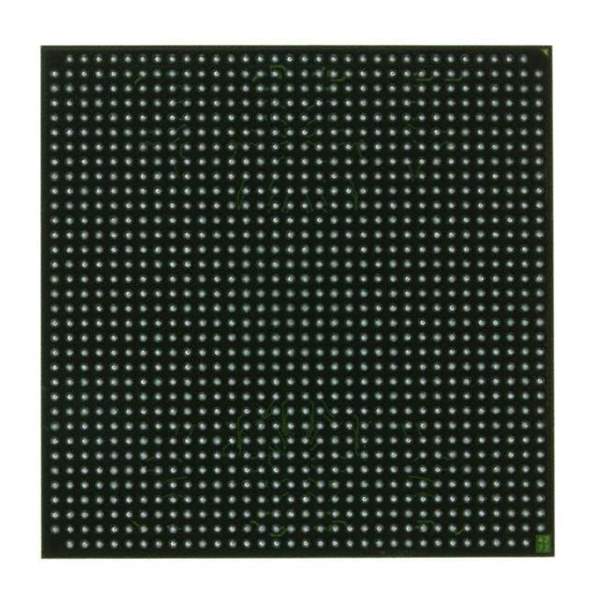

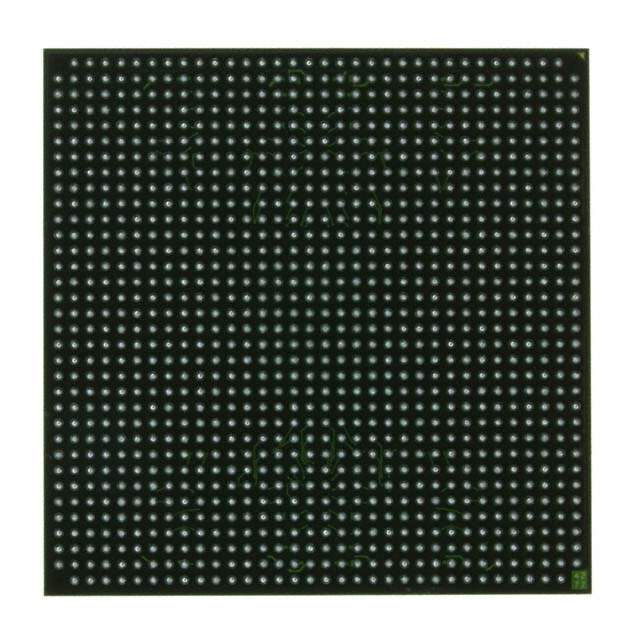

The XC2V4000-4FFG1152C is a high-performance FPGA from Xilinx's Virtex-II family. It is designed for complex digital systems requiring substantial logic resources and high-speed operation. The 'FFG1152' designation indicates a Flip-Chip Fine-Pitch Ball Grid Array package with 1152 pins, facilitating high I/O connectivity. The 'C' suffix denotes a commercial temperature range.

Applications:

• Wireless Communications: Used in base stations, radio access networks, and wireless infrastructure for signal processing, modulation, and demodulation.
• Networking Equipment: Implemented in routers, switches, and network processors for packet processing, traffic management, and security functions.
• Video Processing: Employed in broadcast equipment, video servers, and high-definition displays for video encoding, decoding, and scaling.
• Data Storage: Integrated in storage area networks (SANs) and network-attached storage (NAS) devices for data management, error correction, and encryption.
• Test and Measurement: Utilized in logic analyzers, oscilloscopes, and signal generators for data acquisition, signal analysis, and instrument control.

Features:

• High Logic Capacity: Provides a large number of configurable logic blocks (CLBs) for implementing complex digital circuits.
• On-Chip Memory Resources: Includes embedded block RAM for high-speed data storage and distributed RAM for flexible memory configurations.
• Advanced Clock Management: Features digital clock managers (DCMs) for frequency synthesis, clock skew management, and jitter reduction.
• Flexible I/O Interface: Supports a wide range of I/O standards and protocols, enabling seamless connectivity to external devices.
• High-Speed Serial Transceivers: Integrates RocketIO multi-gigabit transceivers for high-bandwidth serial communication.

Benefits:

• Accelerated Development: Enables rapid prototyping and development of complex digital systems.
• Enhanced Performance: Delivers high-speed operation and optimized resource utilization.
• Increased Flexibility: Offers a high degree of programmability and customization.
• Reduced System Cost: Integrates multiple functions into a single device, reducing component count and board space.
• Improved Reliability: Provides robust performance and stability in demanding environments.

Additional Details:

The XC2V4000-4FFG1152C contains 4,239,360 system gates and 161,280 logic cells. The available distributed RAM is 1,658,880 bits. It features 800 available I/O pins. It operates with a core voltage of 1.5V. The speed grade is -4.
