Same model may have multiple batches, images only for reference.

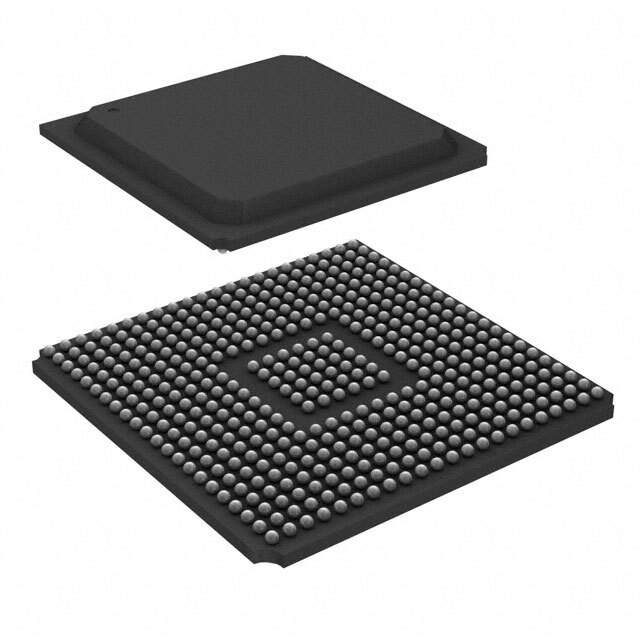

XC3S400-5FG456C Real Image
Same model may have multiple batches, images only for reference.

XC3S400-5FG456C

Part No XC3S400-5FG456C
Manufacturer Xilinx Inc.
Catalog Embedded - FPGAs (Field Programmable Gate Array)
Description IC FPGA 264 I/O 456FBGA / FPGA Spartan®-3 Family 400K Gates 8064 Cells 725MHz 90nm Technology 1.2V 456-Pin FBGA Tray
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Manufacturer Xilinx Inc.
Series Spartan-3
Number of LABs/CLBs 896
Number of Logic Elements/Cells 8064
Total RAM Bits 294912
Number of I/O 264
Number of Gates 400000
Operating Supply Voltage 1.14 V ~ 1.26 V
Mounting SMD
Operating Temperature Range 0°C ~ 85°C (TJ)
Package 456-BBGA
Manufacturer Package 456-FBGA (23x23)
Win Source Part Number 799694-XC3S400-5FG456C
Popularity Medium
Supply and Demand Status Limited
Family Name XC3S400
Introduction Date January 05, 1999
ECCN EAR99
Country of Origin Philippines, Republic of Korea, Taiwan
Estimated EOL Date 2025
Ultra Librarian 3D Model Ultra Librarian XC3S400-5FG456C CAD Model

Description

The XC3S400-5FG456C is a Spartan-3 series integrated circuit manufactured by Xilinx Inc.

  • Operating Temperature: 0°C to 85°C
  • Package: 456-BBGA
  • Mounting: SMD
  • Operating Supply Voltage: 1.14 V to 1.26 V
  • I/O: 264
  • LABs/CLBs: 896
  • Total RAM Bits: 294912
  • Gates: 400000
  • Estimated EOL Date: 2025
