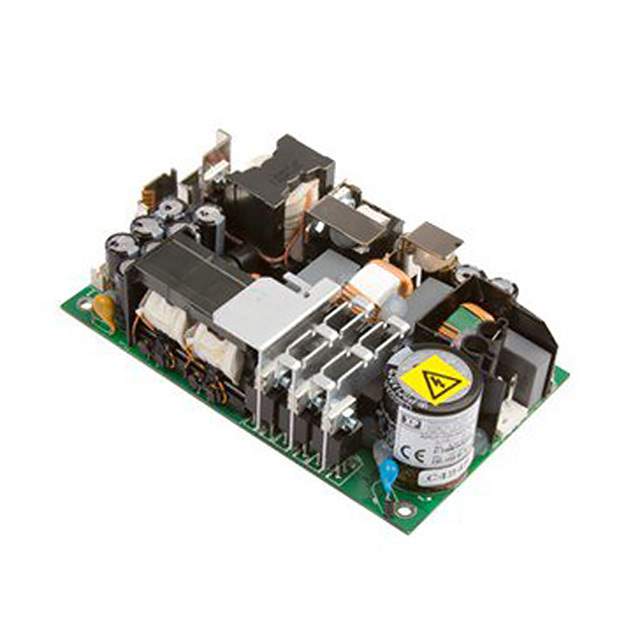

CHD250PS12 Real Image
Same model may have multiple batches, images only for reference.

CHD250PS12

Part No CHD250PS12
Manufacturer XP Power
Catalog External/Internal (Off - Board) AC DC Converters
Description AC/DC CONVERTER 12V 250W / Open Frame AC DC Converters 1 Output 12V 80 ~ 264 VAC Input
Datasheet
CHD250PS12 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - External/Internal (Off-Board) - AC DC Converters
Mfr XP Power
Series CHD250 (250W)
Package Box
Type Open Frame
Number of Outputs 1
Voltage - Input 80 ~ 264 VAC
Voltage - Output 1 12V
Current - Output 1 20.8 A
Power (Watts) 250W
Applications ITE (Commercial) , Medical
Voltage - Isolation 4 kV
Efficiency 94%
Temperature Range - Operating -20°C ~ 70°C (With Derating)
Features Adjustable Output, PFC, Remote On/Off, Standby Output, Universal Input
Mounting Type Chassis Mount
Size / Dimension 5.00" L x 3.00" W x 1.43" H (127.0mm x 76.2mm x 36.3mm)
Approval Agency CB, CE, TUV, UL
Standard Number 62368-1
Minimum Load Required No
Base Product Number CHD250
Standard Package 50
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.40.9530
Win Source Part Number 1338381-CHD250PS12
Ultra Librarian 3D Model Ultra Librarian CHD250PS12 CAD Model

Description

The CHD250PS12 is a 250W open frame power supply from XP Power.

  • Manufacturer: XP Power
  • Product: CHD250PS12
  • Type: AC DC converter
  • Power: 250W
  • Features: Adjustable Output, PFC, Remote On/Off, Standby Output, Universal Input
  • Package Size: 5.00" L x 3.00" W x 1.43" H (127.0mm x 76.2mm x 36.3mm)
  • Applications: ITE (Commercial) and Medical
  • Voltage Input: 80 ~ 264 VAC
  • Isolation Voltage: 4 kV
  • Output: One output with a voltage of 12V
  • Efficiency: 94%
  • Minimum Load: No
  • Mounting Type: Chassis Mount
  • Operating Temperature: -20°C ~ 70°C (with derating)
  • Approvals: CB, CE, TUV, and UL
