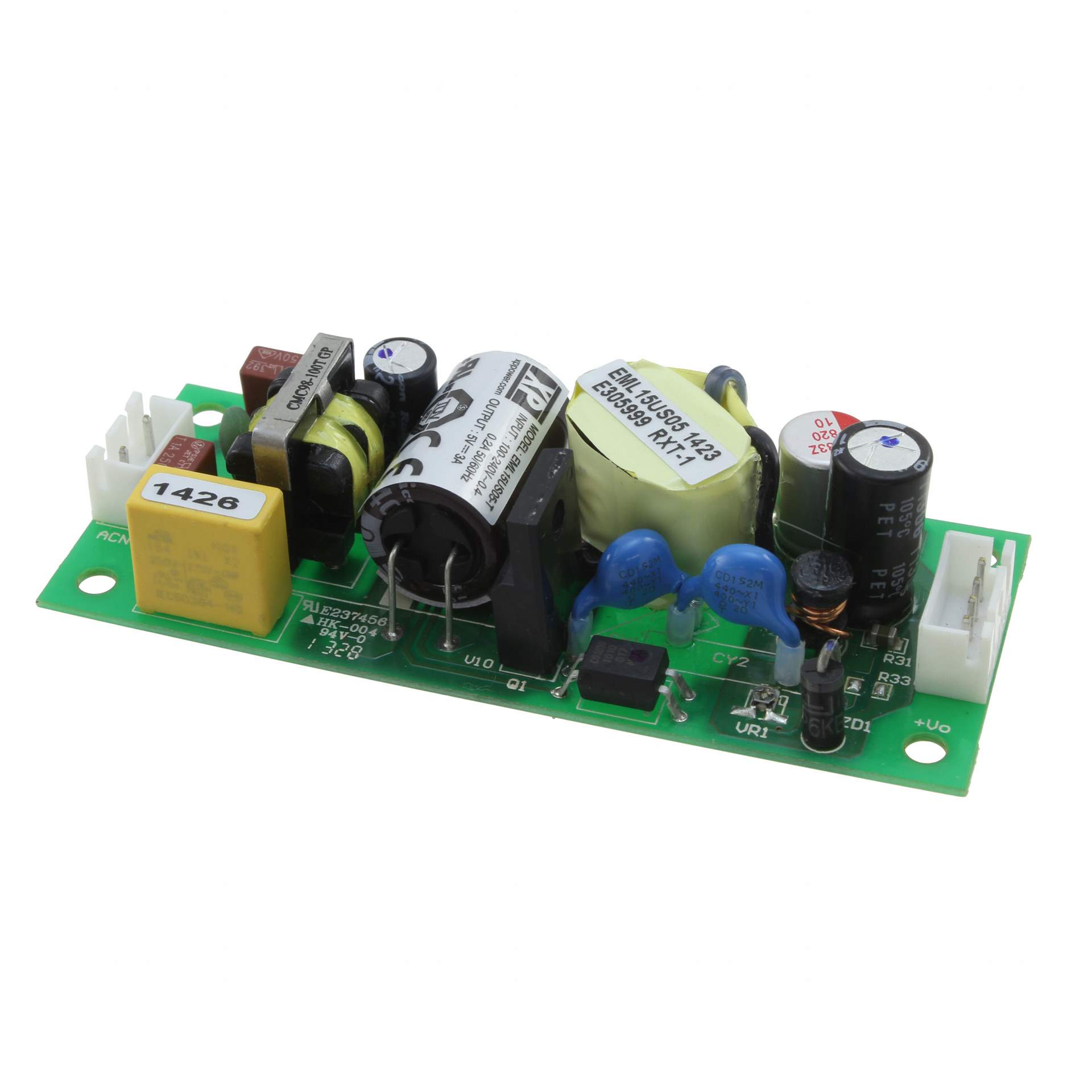

EML15US24-T Real Image
Same model may have multiple batches, images only for reference.

EML15US24-T

Part No EML15US24-T
Manufacturer XP Power
Catalog External/Internal (Off - Board) AC DC Converters
Description AC/DC CONVERTER 24V 15W / Open Frame AC DC Converters 1 Output 24V 85 ~ 264 VAC Input
Datasheet
EML15US24-T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - External/Internal (Off-Board) - AC DC Converters
Mfr XP Power
Series EML15 (15W)
Package Box
Type Open Frame
Number of Outputs 1
Voltage - Input 85 ~ 264 VAC
Voltage - Output 1 24V
Current - Output 1 630 mA
Power (Watts) 15W
Applications Medical
Voltage - Isolation 4 kV
Efficiency 82%
Temperature Range - Operating -20°C ~ 70°C (With Derating)
Features Adjustable Output, DC Input Capable, Universal Input
Mounting Type Chassis Mount
Size / Dimension 3.10" L x 1.25" W x 0.78" H (78.7mm x 31.7mm x 20.0mm)
Minimum Load Required No
Base Product Number EML15
Standard Package 1
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.40.6018
Win Source Part Number 1338960-EML15US24-T
Ultra Librarian 3D Model Ultra Librarian EML15US24-T CAD Model

Description

The EML15US24-T from XP Power is an external AC DC converter designed for medical applications.

  • Power Rating: 15W
  • Voltage Input: 85 ~ 264 VAC
  • Voltage Isolation: 4 kV
  • Efficiency: 82%
  • Adjustable Output: Yes
  • DC Input Capable: Yes
  • Input Type: Universal Input
  • Package: Box
  • Size: 3.10" L x 1.25" W x 0.78" H (78.7mm x 31.7mm x 20.0mm)
  • Voltage Output: 24V
  • Current Output: 630 mA
  • Mounting Type: Chassis Mount
  • Temperature Range: -20°C ~ 70°C (with derating)
  • REACH: Unaffected
  • HTSUS: 8504.40.6018
