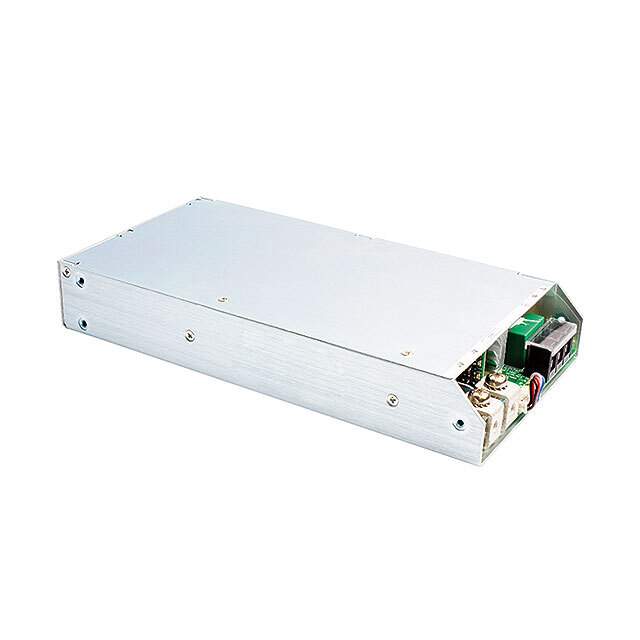

HDS800PS12 Real Image
Same model may have multiple batches, images only for reference.

HDS800PS12

Part No HDS800PS12
Manufacturer XP Power
Catalog External/Internal (Off - Board) AC DC Converters
Description AC/DC CONVERTER 12V 800W / Enclosed AC DC Converters 1 Output 12V 90 ~ 264 VAC Input
Datasheet
HDS800PS12 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - External/Internal (Off-Board) - AC DC Converters
Mfr XP Power
Series HDS800 (800W)
Package Box
Type Enclosed
Number of Outputs 1
Voltage - Input 90 ~ 264 VAC
Voltage - Output 1 12V
Current - Output 1 66.7 A
Power (Watts) 800W
Applications ITE (Commercial)
Voltage - Isolation 3 kV
Efficiency 89%
Temperature Range - Operating -20°C ~ 70°C (With Derating)
Features Adjustable Output, I²C™ Interface, Load Sharing, Remote On/Off, Remote Sense, Standby Output, Universal Input
Mounting Type Chassis Mount
Size / Dimension 9.80" L x 5.00" W x 1.61" H (249.0mm x 127.0mm x 40.9mm)
Approval Agency CB, TUV, UL
Standard Number 62368-1
Minimum Load Required No
Base Product Number HDS800
Standard Package 1
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.40.6018
Win Source Part Number 1351727-HDS800PS12
Ultra Librarian 3D Model Ultra Librarian HDS800PS12 CAD Model

Description

This is an external/internal power supply from XP Power.

  • Series: HDS800 (800W) series
  • Power Rating: 800W
  • Voltage Input Range: 90 ~ 264 VAC
  • Voltage Isolation: 3 kV
  • Type: enclosed
  • Package: box package
  • Size/Dimension: 9.80" L x 5.00" W x 1.61" H (249.0mm x 127.0mm x 40.9mm)
  • Features: adjustable output, I²C™ interface, load sharing, remote on/off, remote sense, standby output, and universal input
  • Number of Outputs: 1
  • Voltage Output: 12V
  • Efficiency: 89%
  • Minimum Load: does not require a minimum load
  • Application: ITE (Commercial) applications
  • Temperature Range: -20°C ~ 70°C (With Derating)
  • Approvals: CB, TUV, UL
