Same model may have multiple batches, images only for reference.

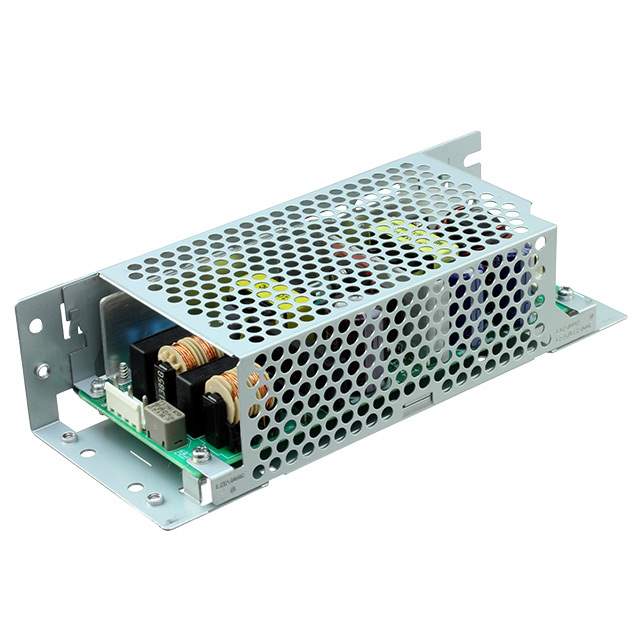

LFA100F-24-J1R Real Image
Same model may have multiple batches, images only for reference.

LFA100F-24-J1R

Part No LFA100F-24-J1R
Manufacturer Cosel USA, Inc.
Catalog External/Internal (Off - Board) AC DC Converters
Description AC/DC CONVERTER 24V / Open Frame AC DC Converters 1 Output 24V 85 ~ 264 VAC Input
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - External/Internal (Off-Board) - AC DC Converters
Mfr Cosel USA, Inc.
Series LFA (100W)
Package Box
Type Open Frame
Number of Outputs 1
Voltage - Input 85 ~ 264 VAC
Voltage - Output 1 24V
Current - Output 1 4.3 A
Applications ITE (Commercial)
Voltage - Isolation 3 kV
Efficiency 87%
Temperature Range - Operating -10°C ~ 70°C
Mounting Type Chassis Mount
Size / Dimension 6.10" L x 2.44" W x 1.32" H (154.9mm x 62.0mm x 33.5mm)
Approval Agency CE, CSA, cURus, TUV, UL
Standard Number 60950-1; 62368-1
Minimum Load Required No
Base Product Number LFA100F
Standard Package 1
MSL Level Not Applicable
ECCN EAR99
HTSUS 8504.40.9520
California Prop 65 Warning Information
Win Source Part Number 1350046-LFA100F-24-J1R
Ultra Librarian 3D Model Ultra Librarian LFA100F-24-J1R CAD Model

Description

The Cosel LFA100F-24-J1R is a 100W open frame AC/DC converter designed for external/internal (off-board) power supply applications.

  • Power: 100W
  • Package: Box
  • Size: 6.10" L x 2.44" W x 1.32" H (154.9mm x 62.0mm x 33.5mm)
  • Input Voltage: 85~264 VAC
  • Output Voltage: 24V
  • Efficiency: 87%
  • Temperature Range: -10°C to 70°C
  • Approvals: CE, CSA, cURus, TUV, UL
  • Application: ITE (Commercial)
