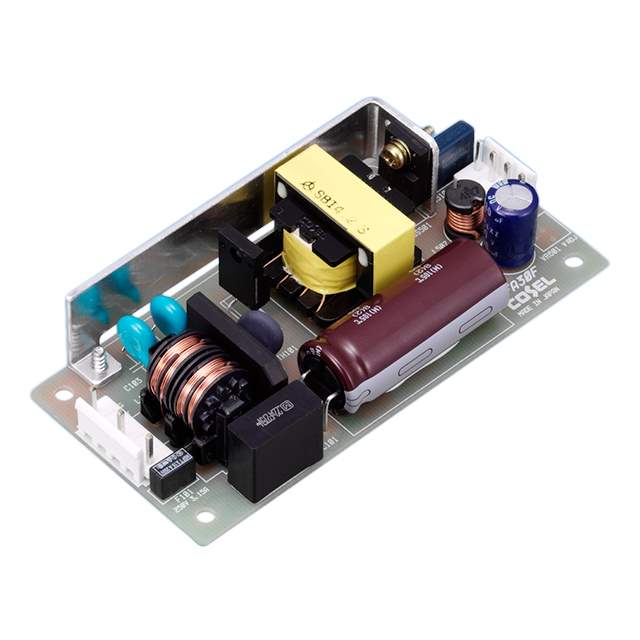

LFA30F-24-J1 Real Image
Same model may have multiple batches, images only for reference.

LFA30F-24-J1

Part No LFA30F-24-J1
Manufacturer Cosel USA, Inc.
Catalog External/Internal (Off - Board) AC DC Converters
Description AC/DC CONVERTER 24V / Open Frame AC DC Converters 1 Output 24V 85 ~ 264 VAC Input
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - External/Internal (Off-Board) - AC DC Converters
Mfr Cosel USA, Inc.
Series LFA (30W)
Package Box
Type Open Frame
Number of Outputs 1
Voltage - Input 85 ~ 264 VAC
Voltage - Output 1 24V
Current - Output 1 1.3 A
Applications ITE (Commercial)
Voltage - Isolation 3 kV
Efficiency 84%
Temperature Range - Operating -10°C ~ 70°C
Mounting Type Chassis Mount
Size / Dimension 4.13" L x 1.97" W x 1.04" H (104.9mm x 50.0mm x 26.4mm)
Approval Agency CE, CSA, cURus, TUV, UL
Standard Number 60950-1; 62368-1
Minimum Load Required No
Base Product Number LFA30F
Standard Package 1
MSL Level Not Applicable
ECCN EAR99
HTSUS 8504.40.9510
California Prop 65 Warning Information
Win Source Part Number 1352232-LFA30F-24-J1
Ultra Librarian 3D Model Ultra Librarian LFA30F-24-J1 CAD Model

Description

The LFA (30W) open frame type external/internal (off-board) AC DC converter is a power supply featuring a box package. Cosel USA manufactures the converter.

  • Series: LFA (30W)
  • Type: Open Frame
  • Application: ITE (Commercial)
  • Package: Box
  • Size Dimension: 4.13" L x 1.97" W x 1.04" H (104.9mm x 50.0mm x 26.4mm)
  • Standard Package: 1
  • Voltage Input: 85 ~ 264 VAC
  • Voltage Isolation: 3 kV
  • Number of Outputs: 1
  • Voltage Output: 24V
  • Efficiency: 84%
  • Minimum Load Required: No
  • Mounting Type: Chassis Mount
  • Operating Temperature Range: -10°C ~ 70°C
  • Approvals: CE, CSA, cURus, TUV, UL
  • Standard Number: 60950-1; 62368-1
