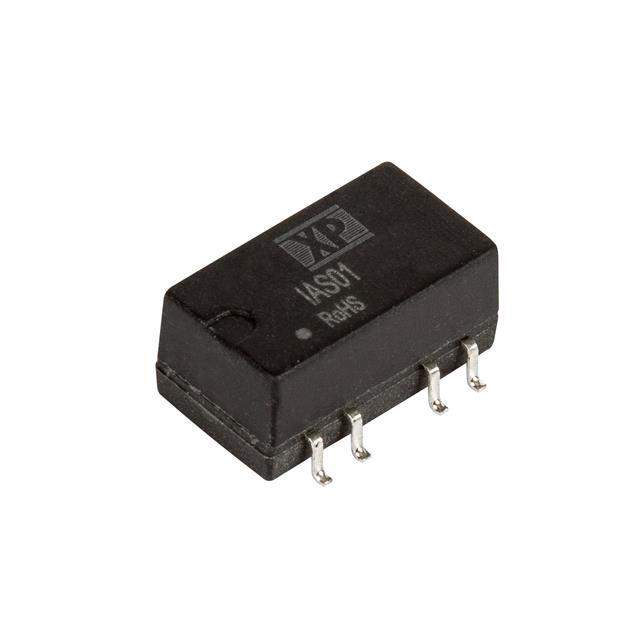

Same model may have multiple batches, images only for reference.

IAS0105D12

Name: IAS0105D12
Brand: XP Power
SKU: 1340823
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	IAS0105D12
Manufacturer	XP Power
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER +/-12V 1W / Isolated Module DC DC Converter 2 Output 12V -12V 42mA, 42mA 4.5V - 5.5V Input
Datasheet	IAS0105D12 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount - DC DC Converters
Mfr	XP Power
Series	IAS01 (1W)
Package	Tube
Type	Isolated Module
Number of Outputs	2
Voltage - Input (Min)	4.5V
Voltage - Input (Max)	5.5V
Voltage - Output 1	12V
Voltage - Output 2	-12V
Current - Output (Max)	42mA, 42mA
Power (Watts)	1 W
Voltage - Isolation	1.5 kV
Applications	ITE (Commercial)
Temperature Range - Operating	-40°C ~ 105°C (With Derating)
Efficiency	83%
Mounting Type	Surface Mount
Package / Case	10-SMD Module, 6 Leads
Size / Dimension	0.60" L x 0.33" W x 0.29" H (15.2mm x 8.5mm x 7.3mm)
Approval Agency	CE, TUV, UL
Base Product Number	IAS0105
Standard Package	32
MSL Level	Not Applicable
ECCN	EAR99
HTSUS	8504.40.9580
Win Source Part Number	1340823-IAS0105D12
Ultra Librarian 3D Model	Ultra Librarian IAS0105D12 CAD Model

Alternative Products

Description

The 1340823-IAS0105D12 is a 1W isolated DC-DC converter module from XP Power.

Size: 0.60" L x 0.33" W x 0.29" H (15.2mm x 8.5mm x 7.3mm)
Application: ITE (Commercial)
Outputs: Two outputs with voltages of 12V and -12V
Voltage Isolation: 1.5 kV
Input Voltage: 4.5V to 5.5V
Output Current: 42mA per output (Max)
Mounting: Surface Mount
Package/Case: 10-SMD Module, 6 Leads
Operating Temperature: -40°C to 105°C (with derating)
Approvals: CE, TUV, and UL
