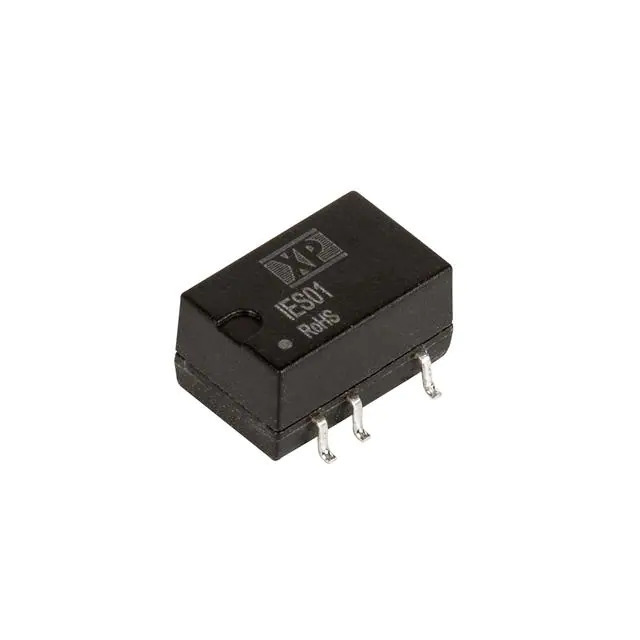

Same model may have multiple batches, images only for reference.

IES0105S05-TR

Name: IES0105S05-TR
Brand: XP Power
SKU: 1378610
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	IES0105S05-TR
Manufacturer	XP Power
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 5V 1W / Isolated Module DC DC Converter 1 Output 5V 200mA 4.5V - 5.5V Input
Datasheet	IES0105S05-TR Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount - DC DC Converters
Mfr	XP Power
Series	IES01 (1W)
Package	Tape & Reel
Product Status	Active
Type	Isolated Module
Number of Outputs	1
Voltage - Input (Min)	4.5V
Voltage - Input (Max)	5.5V
Voltage - Output 1	5V
Voltage - Output 2	-
Voltage - Output 3	-
Voltage - Output 4	-
Current - Output (Max)	200mA
Power (Watts)	1 W
Voltage - Isolation	1.5 kV
Applications	ITE (Commercial)
Features	-
Temperature Range - Operating	-40°C ~ 105°C (With Derating)
Efficiency	82%
Mounting Type	Surface Mount
Package / Case	8-SMD Module, 5 Leads
Size / Dimension	0.52" L x 0.33" W x 0.29" H (13.2mm x 8.5mm x 7.3mm)
Supplier Device Package	-
Control Features	-
Approval Agency	CE, TUV, UL
Standard Number	62368-1
Base Product Number	IES0105
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8504.40.9580
Win Source Part Number	1378610-IES0105S05-TR
Ultra Librarian 3D Model	Ultra Librarian IES0105S05-TR CAD Model

Alternative Products

Description

The IES0105S05-TR is a power supply module designed for board mount DC-DC conversion manufactured by XP Power.

Series: IES01
Power: 1W
Temperature Range: -40°C to 105°C
Size: 0.52" L x 0.33" W x 0.29" H
Input Voltage Range: 4.5V to 5.5V
Output Voltage: 5V
Maximum Output Current: 200mA
Efficiency: Up to 82%
Approvals: CE, TUV, and UL
Application: Commercial Information Technology Equipment (ITE)
