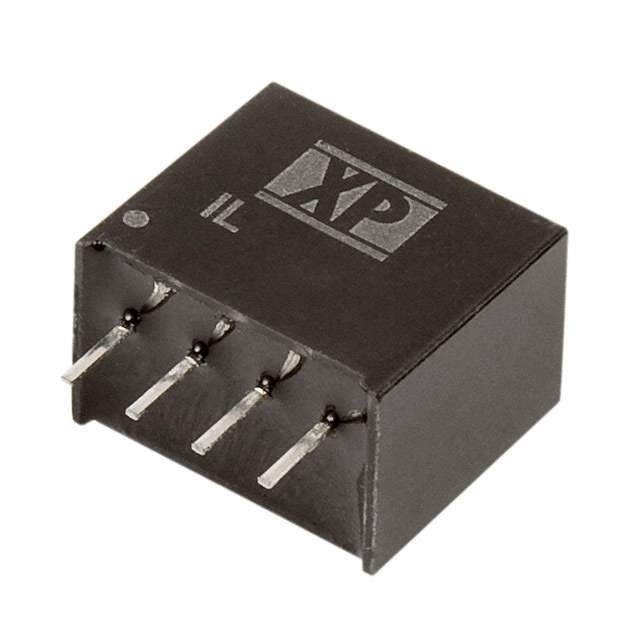

IL0524S Real Image
Same model may have multiple batches, images only for reference.

IL0524S

Part No IL0524S
Manufacturer XP Power
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 24V 2W / Isolated Module DC DC Converter 1 Output 24V 84mA 4.5V - 5.5V Input
Datasheet
IL0524S Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Manufacturer XP Power
Packaging Tube
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 4.5V
Voltage - Input (Max) 5.5V
Voltage - Output 1 24V
Current - Output (Max) 84mA
Power (Watts) 2 W
Voltage - Isolation 1 kV
Applications ITE (Commercial)
Temperature Range - Operating -40°C ~ 85°C
Efficiency 82%
Mounting Through Hole
Case / Package 4-SIP Module
Size / Dimension 0.46" L x 0.30" W x 0.40" H (11.7mm x 7.5mm x 10.2mm)
Base Product Number IL0524
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.40.9580
Other Part Number 1470-1480-5
Standard Package 40
Win Source Part Number 1335164-IL0524S
Ultra Librarian 3D Model Ultra Librarian IL0524S CAD Model

Description

The XP Power 1335164-IL0524S is an isolated module type power supply with a power output of 2 W.

  • Power: 2 W
  • Voltage Isolation: 1 kV
  • Current Output: 84mA
  • Voltage Input: 4.5V to 5.5V
  • Voltage Output: 24V
  • Application: ITE (Commercial)
  • Efficiency: 82%
  • Temperature Range: -40°C to 85°C
  • Package: 4-SIP Module
  • ROHS3 Compliant: Yes
