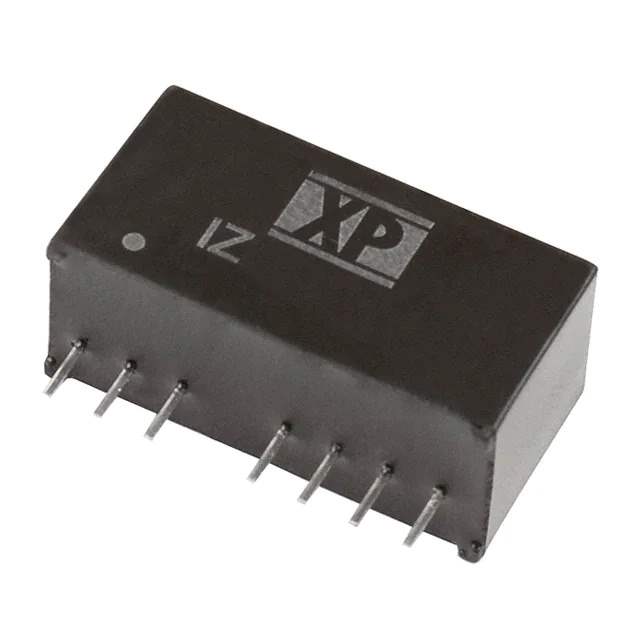

Same model may have multiple batches, images only for reference.

IZ1205S

Name: IZ1205S
Brand: XP Power
SKU: 847535
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	IZ1205S
Manufacturer	XP Power
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER +/-5V 3W
Datasheet	IZ1205S Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount - DC DC Converters
Mfr	XP Power
Series	IZ (3W)
Package	Tube
Product Status	Active
Type	Isolated Module
Number of Outputs	2
Voltage - Input (Min)	9V
Voltage - Input (Max)	18V
Voltage - Output 1	5V
Voltage - Output 2	-5V
Current - Output (Max)	300mA
Power (Watts)	3 W
Voltage - Isolation	1.6 kV
Applications	ITE (Commercial)
Features	Remote On/Off, SCP
Temperature Range - Operating	-40°C ~ 100°C
Efficiency	80%
Mounting Type	Through Hole
Package / Case	8-SIP Module, 7 Leads
Size / Dimension	0.86" L x 0.36" W x 0.44" H (21.9mm x 9.2mm x 11.1mm)
Control Features	Enable, Active Low
Standard Number	62368-1
Base Product Number	IZ1205
Standard Package	20 pcs
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8504.40.9580
Win Source Part Number	847535-IZ1205S
Ultra Librarian 3D Model	Ultra Librarian IZ1205S CAD Model

Alternative Products

Description

The IZ (3W) series from XP Power is an isolated module for board mount DC-DC converters.

Series: IZ (3W)
Size: 0.86" L x 0.36" W x 0.44" H (21.9mm x 9.2mm x 11.1mm)
Power: 3W
Outputs: Dual (5V and -5V)
Input Voltage: 9V to 18V
Output Current: 300mA (max)
Features: Remote on/off, SCP (Short Circuit Protection)
Package: Tube
Mounting: Through-Hole
Standard Number: 62368-1
Status: Active
