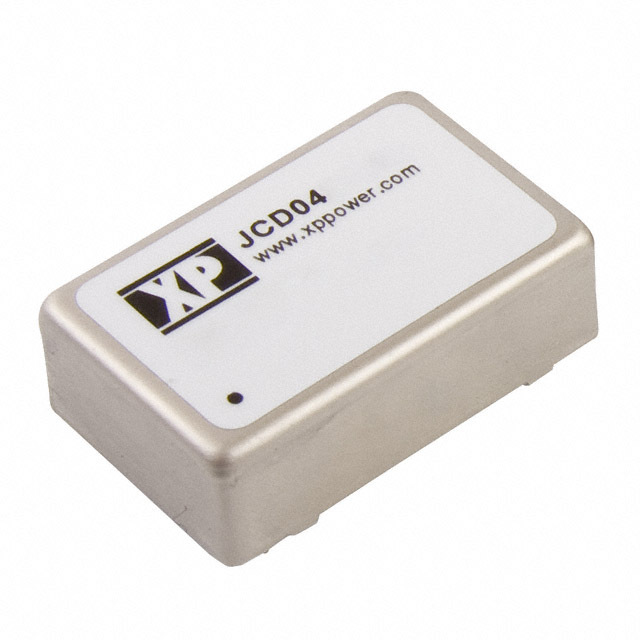

JCD0424D12 XP Power – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

JCD0424D12

Part No JCD0424D12
Manufacturer XP Power
Catalog Board Mount AC DC Converters
Description DC DC CONVERTER +/-12V 4W
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board MountDC DC Converters
Mfr XP Power
Series JCD (4W)
Packaging Tube
Part Status Active
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 18V
Voltage - Input (Max) 36V
Voltage - Output 1 12V
Voltage - Output 2 -12V
Current - Output (Max) 166mA
Power (Watts) 4 W
Voltage - Isolation 1.6 kV
Applications ITE (Commercial)
Features OCP, OVP, SCP
Operating Temperature -40°C ~ 100°C
Efficiency 83%
Mounting Type Through Hole
Package / Case 24-DIP Module, 8 Leads
Size / Dimension 1.25" L x 0.80" W x 0.41" H (31.8mm x 20.3mm x 10.4mm)
Standard Number 62368-1
Base Product Number JCD0424
Ultra Librarian 3D Model Ultra Librarian JCD0424D12 CAD Model
