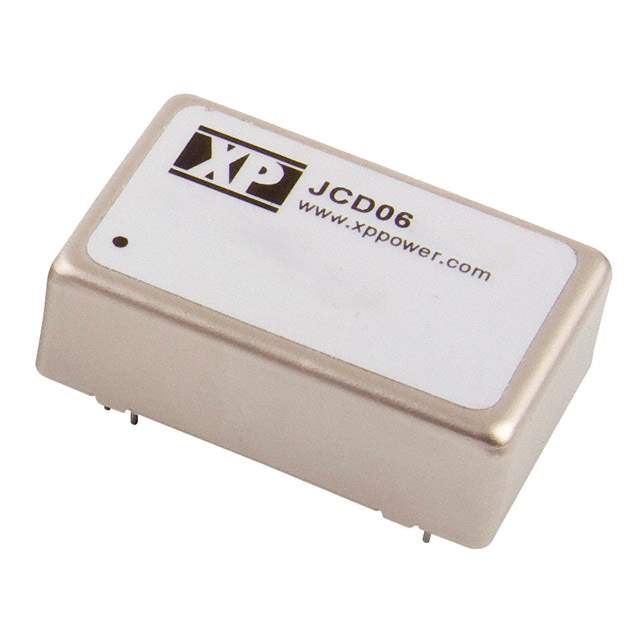

Same model may have multiple batches, images only for reference.

JCD0648S12

Name: JCD0648S12
Brand: XP Power
SKU: 1337939
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	JCD0648S12
Manufacturer	XP Power
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 12V 6W / Isolated Module DC DC Converter 1 Output 12V 500mA 36V - 72V Input
Datasheet	JCD0648S12 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount - DC DC Converters
Mfr	XP Power
Series	JCD (6W)
Package	Tube
Type	Isolated Module
Number of Outputs	1
Voltage - Input (Min)	36V
Voltage - Input (Max)	72V
Voltage - Output 1	12V
Current - Output (Max)	500mA
Power (Watts)	6 W
Voltage - Isolation	1.6 kV
Applications	ITE (Commercial)
Features	OCP, OVP, SCP
Temperature Range - Operating	-40°C ~ 100°C
Efficiency	84%
Mounting Type	Through Hole
Package / Case	24-DIP Module, 7 Leads
Size / Dimension	1.25" L x 0.80" W x 0.41" H (31.8mm x 20.3mm x 10.4mm)
Standard Number	62368-1
Base Product Number	JCD0648
Standard Package	10
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8504.40.9580
Win Source Part Number	1337939-JCD0648S12
Ultra Librarian 3D Model	Ultra Librarian JCD0648S12 CAD Model

Alternative Products

Description

The JCD0648S12 is an isolated module DC-DC converter manufactured by XP Power.

Type: Isolated Module DC-DC Converter
Power Output: 6W
Efficiency: 84%
Voltage Isolation: 1.6 kV
Current Output: 500mA
Application: ITE (Commercial)
Temperature Range: -40°C to 100°C
Packaging: Tube
HTSUS: 8504.40.9580
Base Product Number: JCD0648
Standard Number: 62368-1
