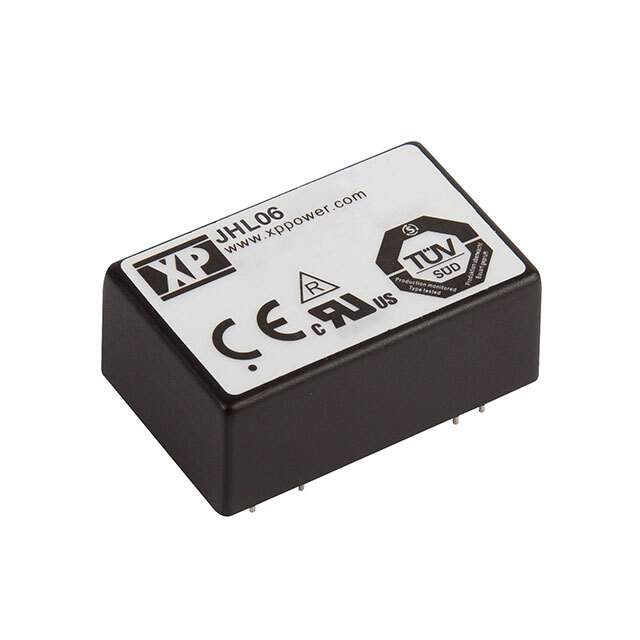

Same model may have multiple batches, images only for reference.

JHL0612D15

Name: JHL0612D15
Brand: XP Power
SKU: 1351189
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	JHL0612D15
Manufacturer	XP Power
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER +/-15V 6W / Isolated Module DC DC Converter 2 Output 15V -15V 200mA, 200mA 10V - 17V Input
Datasheet	JHL0612D15 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount - DC DC Converters
Mfr	XP Power
Series	JHL (6W)
Package	Tube
Type	Isolated Module
Number of Outputs	2
Voltage - Input (Min)	10V
Voltage - Input (Max)	17V
Voltage - Output 1	15V
Voltage - Output 2	-15V
Current - Output (Max)	200mA, 200mA
Power (Watts)	6 W
Voltage - Isolation	4 kV
Applications	Medical
Features	OCP, OVP, SCP, UVLO
Temperature Range - Operating	-20°C ~ 80°C
Efficiency	83%
Mounting Type	Through Hole
Package / Case	24-DIP Module, 9 Leads
Size / Dimension	1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm)
Base Product Number	JHL0612
Standard Package	10
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8504.40.9580
Win Source Part Number	1351189-JHL0612D15
Ultra Librarian 3D Model	Ultra Librarian JHL0612D15 CAD Model

Alternative Products

Description

The electronic component with Win Source Part Number 1351189-JHL0612D15 is a power supply board mount DC DC converter that is part of the JHL (6W) series.

Series: JHL (6W)
Type: Isolated Module
Features: OCP, OVP, SCP, and UVLO
Package: Tube
Size/Dimension: 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm)
Application: Medical applications
Efficiency: 83%
Mounting: Through Hole
