Same model may have multiple batches, images only for reference.

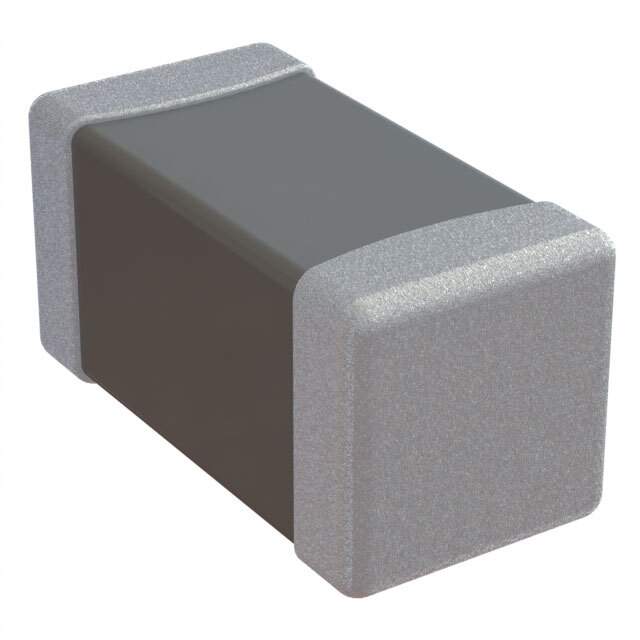

AC0805JRNPO9BN220 Real Image
Same model may have multiple batches, images only for reference.

AC0805JRNPO9BN220

Part No AC0805JRNPO9BN220
Manufacturer Yageo
Catalog Ceramic Capacitors
Description CAP CER 22PF 50V C0G/NPO 0805 / 22 pF ±5% 50V Ceramic Capacitor C0G, NP0 0805 (2012 Metric)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Ceramic Capacitors
Manufacturer Yageo
Packaging Reel - TR
Capacitance 22 pF
Tolerance ±5%
Voltage - Rated 50V
Temperature Coefficient C0G, NP0
Temperature Range - Operating -55°C ~ 125°C
Ratings AEC-Q200
Applications Automotive
Mounting Surface Mount, MLCC
Case / Package 0805 (2012 Metric)
Size / Dimension 0.079" L x 0.049" W (2.00mm x 1.25mm)
Thickness (Max) 0.028" (0.70mm)
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.24.0020
Other Part Number 311-3136-1,311-3136-6,311-3136-2
Standard Package 4,000
Win Source Part Number 1330312-AC0805JRNPO9BN220
Ultra Librarian 3D Model Ultra Librarian AC0805JRNPO9BN220 CAD Model

Description

The Yageo electronic component has a Win Source Part Number of 1330312-AC0805JRNPO9BN220.

  • Manufacturer: Yageo
  • Win Source Part Number: 1330312-AC0805JRNPO9BN220
  • Type: Ceramic Capacitor
  • Capacitance: 22 pF
  • Tolerance: ±5%
  • Voltage Rating: 50V
  • Temperature Coefficient: C0G, NP0
  • AEC-Q200 Rated: Yes
  • Thickness: 0.028" (0.70mm)
  • ROHS3 Compliant: Yes
