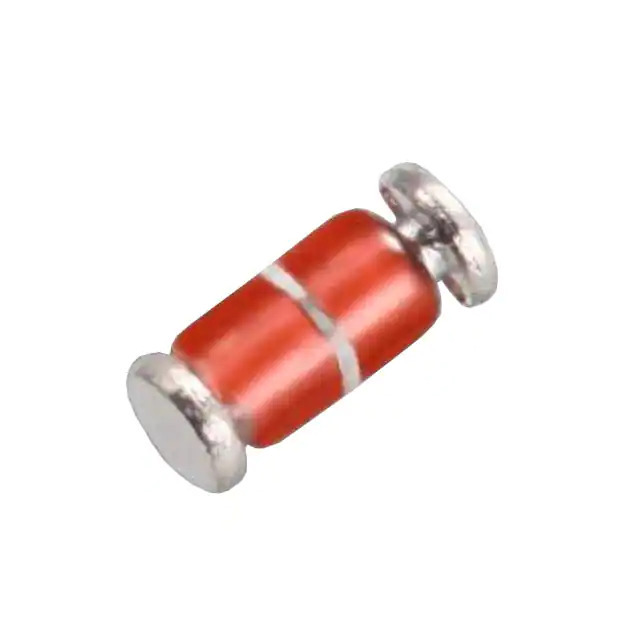

Same model may have multiple batches, images only for reference.
BK32002502-MH Yageo
Same model may have multiple batches, images only for reference.

BK32002502-MH

Part No BK32002502-MH
Manufacturer Yageo
Catalog Gas Discharge Tube Arresters (GDT)
Description GDT 500V 500A 1 POLE REEL / Gas Discharge Tube 500 V 500A ±20% 1 Pole User Defined
Datasheet
BK32002502-MH Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - Gas Discharge Tube Arresters (GDT)
Mfr YAGEO
Series BK3-M(H)
Package Tape & Reel
Product Status Active
Voltage - DC Spark Over (Nom) 500 V
Impulse Discharge Current (8/20µs) 500A
Tolerance ±20%
Number of Poles 1
Fail Short No
Mounting Type User Defined
Package / Case Cylinder No Lead
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.30.8000
Win Source Part Number 1361463-BK32002502-MH
Ultra Librarian 3D Model Ultra Librarian BK32002502-MH CAD Model

Description

The YAGEO BK3-M(H) is a gas discharge tube arrester (GDT) used for circuit protection.

  • Manufacturer: YAGEO
  • Voltage: 500V
  • Impulse Discharge Current: 500A
  • Number of Poles: 1
  • Fail Short: No
  • Package / Case: Cylinder No Lead
  • Mounting Type: User Defined
  • Tolerance: ±20%
  • ECCN: EAR99
