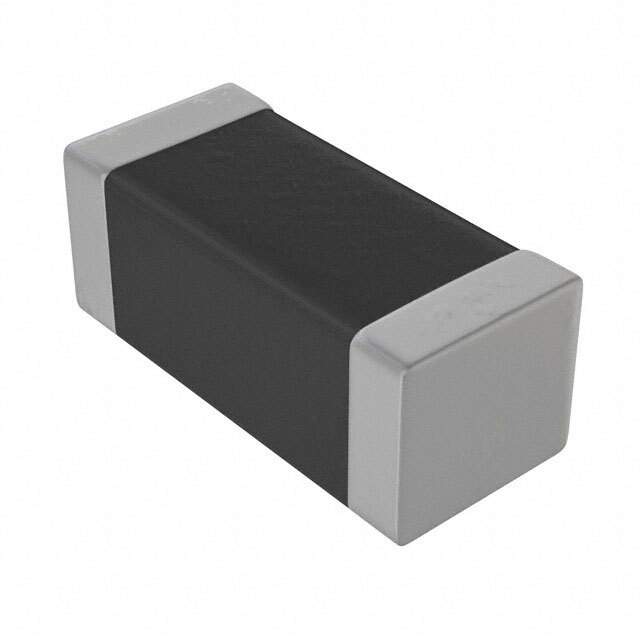

CC1808JKNPOEBN100 Real Image
Same model may have multiple batches, images only for reference.

CC1808JKNPOEBN100

Part No CC1808JKNPOEBN100
Manufacturer Yageo
Catalog Ceramic Capacitors
Description CAP CER 10PF 3KV C0G/NPO 1808 / 10 pF ±5% 3000V (3kV) Ceramic Capacitor C0G, NP0 1808 (4520 Metric)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Ceramic Capacitors
Manufacturer Yageo
Packaging Reel - TR
Capacitance 10 pF
Tolerance ±5%
Voltage - Rated 3000V (3kV)
Temperature Coefficient C0G, NP0
Temperature Range - Operating -55°C ~ 125°C
Features High Voltage
Applications General Purpose
Mounting Surface Mount, MLCC
Case / Package 1808 (4520 Metric)
Size / Dimension 0.177" L x 0.079" W (4.50mm x 2.00mm)
Thickness (Max) 0.071" (1.80mm)
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.24.0020
Other Part Number 225004311523,311-3606-1,CC1808JKNPOEBN100-ND,311-3606-2,1808CG100JGBB00,311-3606-6
Standard Package 2,000
Win Source Part Number 1331048-CC1808JKNPOEBN100
Ultra Librarian 3D Model Ultra Librarian CC1808JKNPOEBN100 CAD Model

Description

The Yageo 1331048-CC1808JKNPOEBN100 is a ceramic capacitor with a capacitance of 10pF and a voltage rating of 3000V (3kV).

  • Capacitance: 10pF
  • Voltage Rating: 3000V (3kV)
  • Mounting Type: Surface mountable
  • Size: 0.177" L x 0.079" W (4.50mm x 2.00mm)
  • Tolerance: ±5%
  • Temperature Coefficient: C0G, NP0
  • Thickness: 0.071" (1.80mm)
  • Temperature Range: -55°C to 125°C
  • Applications: General-purpose
