Same model may have multiple batches, images only for reference.

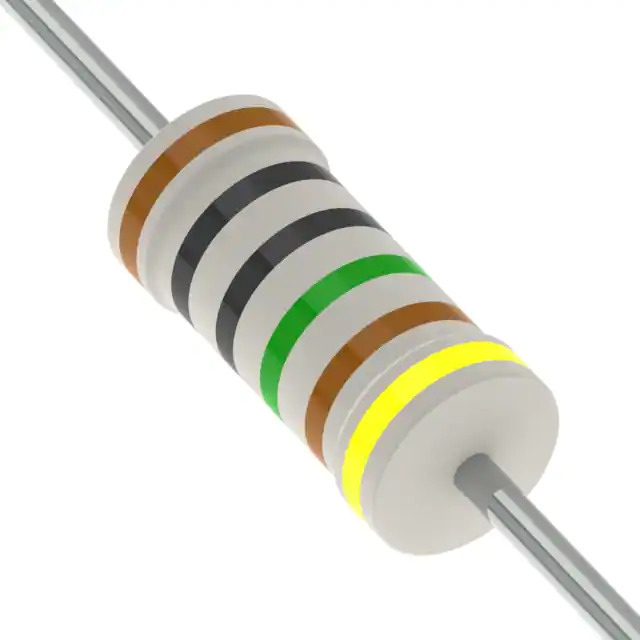

HHV-25FR-52-10M Yageo
Same model may have multiple batches, images only for reference.

HHV-25FR-52-10M

Part No HHV-25FR-52-10M
Manufacturer Yageo
Catalog Through Hole Resistors
Description RES 10M OHM 1% 1/4W AXIAL
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors - Through Hole Resistors
Mfr YAGEO
Series HHV
Package Tape & Reel (TR)
Product Status Active
Resistance 10 MOhms
Tolerance ±1%
Power (Watts) 0.25W, 1/4W
Composition Metal Film
Features Flame Retardant Coating, High Voltage, Safety
Temperature Coefficient ±200ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Package / Case Axial
Supplier Device Package Axial
Size / Dimension 0.094" Dia x 0.248" L (2.40mm x 6.30mm)
Height - Seated (Max) -
Number of Terminations 2
Failure Rate -
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0090
Win Source Part Number 1374483-HHV-25FR-52-10M
Ultra Librarian 3D Model Ultra Librarian HHV-25FR-52-10M CAD Model

Description

The HHV-25FR-52-10M is a through-hole resistor from YAGEO's HHV series.

  • Series: HHV
  • Resistance: 10 MOhms
  • Tolerance: ±1%
  • Technology: Metal Film
  • Number of Terminations: 2
  • Power (Watts): 0.25W (1/4W)
  • Size / Dimension: 0.094" Dia x 0.248" L (2.40mm x 6.30mm)
  • Operating Temperature: -55°C ~ 155°C
