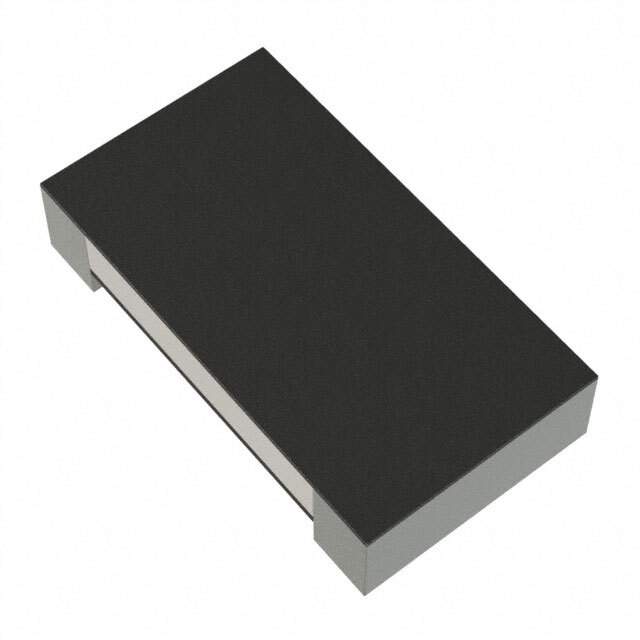

PA0402FRL7T0R02L Real Image
Same model may have multiple batches, images only for reference.

PA0402FRL7T0R02L

Part No PA0402FRL7T0R02L
Manufacturer Yageo
Catalog Chip Resistor - Surface Mount
Description RES 0.02 OHM 1% 1/16W 0402
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Resistors
Estimated Pruduction Lead Time 19 Weeks
Features 20 mOhms ±1% 0.063W, 1/16W Chip Resistor 0402 (1005 Metric) Current Sense, Moisture Resistant Metal Element
Manufacturer Yageo
Series PA0402
Package Reel - TR
Operating Temperature Range -55°C ~ 125°C
Package 0402 (1005 Metric)
Case / Package 0402
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0030
Other Part Number YAG6081TR, YAG6081CT, YAG6081DKR
Quantity per package 10000
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 888503-PA0402FRL7T0R02L
Ultra Librarian 3D Model Ultra Librarian PA0402FRL7T0R02L CAD Model

Description

The Yageo PA0402FRL7T0R02L is a chip resistor from Yageo.

  • Power: 1/16W
  • Element: Metal, moisture resistant
  • Resistance: 20 mOhms ±1%
  • Operating Temperature Range: -55°C to 125°C
  • Package: 0402 (1005 Metric)
  • Mounting: Reel-TR
  • Supply and Demand Status: Limited
  • Quantity per Package: 10000
  • ECCN: EAR99
  • MSL Level: 1 (Unlimited)
  • Estimated Production Lead Time: 19 weeks
  • REACH Status: REACH Unaffected
