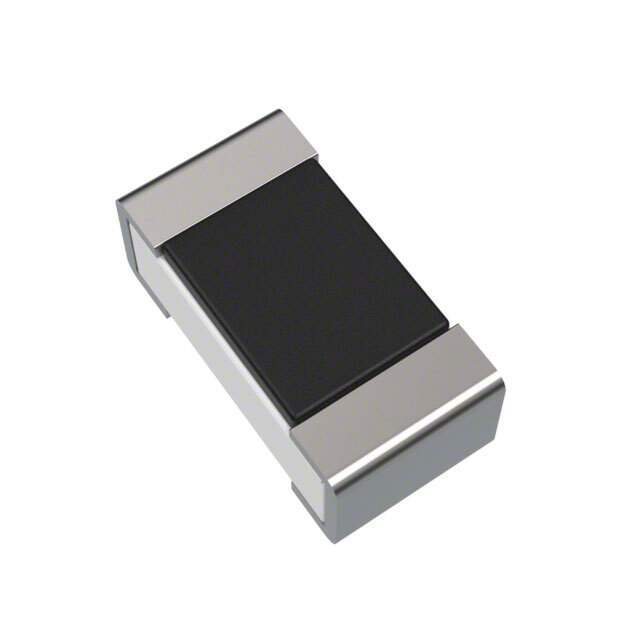

Same model may have multiple batches, images only for reference.
RC0201FR-072K4LYAGEO
Same model may have multiple batches, images only for reference.

RC0201FR-072K4L

Part No RC0201FR-072K4L
Manufacturer Yageo
Catalog Chip Resistor - Surface Mount
Description RES 2.4K OHM 1% 1/20W 0201
Datasheet
RC0201FR-072K4L Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer YAGEO
Category Resistors Chip Resistor - Surface Mount
Part Status Active
Resistance 2.4 kOhms
Power (Watts) 0.05W, 1/20W
Composition Thick Film
Features Moisture Resistant
Temperature Coefficient ±200ppm/°C
Operating Temperature -55°C ~ 125°C
Package / Case 0201 (0603 Metric)
Size / Dimension 0.024" L x 0.012" W (0.60mm x 0.30mm)
Height - Seated (Max) 0.010" (0.26mm)
Win Source Part Number WS1309691-RC0201FR-072K4L
Ultra Librarian 3D Model Ultra Librarian RC0201FR-072K4L CAD Model

Description

2.4 kOhms ±1% 0.05W, 1/20W Chip Resistor 0201 (0603 Metric) Moisture Resistant Thick Film
