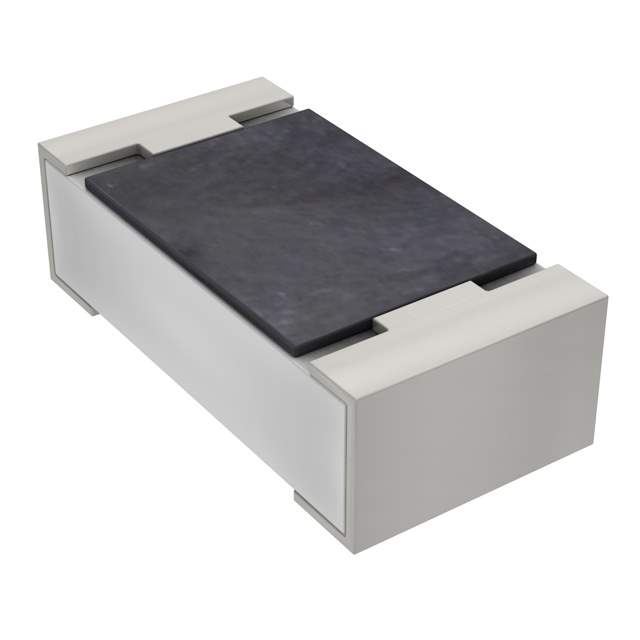

The RC0603JR-07160KL is a thick film chip resistor manufactured by Yageo. It is designed for general-purpose applications in electronic circuits, providing a fixed resistance value. This resistor is available in a small 0603 surface-mount package, making it suitable for high-density circuit boards.

Applications

• Current limiting
• Voltage division
• Pull-up/pull-down resistors
• Filtering circuits
• General-purpose circuits
• Signal termination

Features

• Thick film resistor
• 0603 surface mount package
• ±5% tolerance
• 1/10W power rating
• RoHS compliant

Benefits

• Provides a stable and reliable resistance value.
• Reduces board space due to its small package size.
• Easy to integrate into automated assembly processes.
• Suitable for a wide range of general-purpose applications.
• Offers good performance at a reasonable cost.

Additional Details

The RC0603JR-07160KL has a resistance value of 160 kΩ with a tolerance of ±5%. The power rating is 1/10W (0.1W), meaning it can dissipate up to 0.1 watts of power without exceeding its temperature limits. The operating temperature range is typically -55°C to +155°C. The 0603 package measures 0.063 inches in length and 0.031 inches in width. The thick film construction provides good stability and reliability. The resistor is available in tape and reel packaging for automated pick-and-place assembly. The 'JR' in the part number indicates that it is a standard tolerance resistor from Yageo. It is commonly used in a wide variety of electronic devices and circuits.
