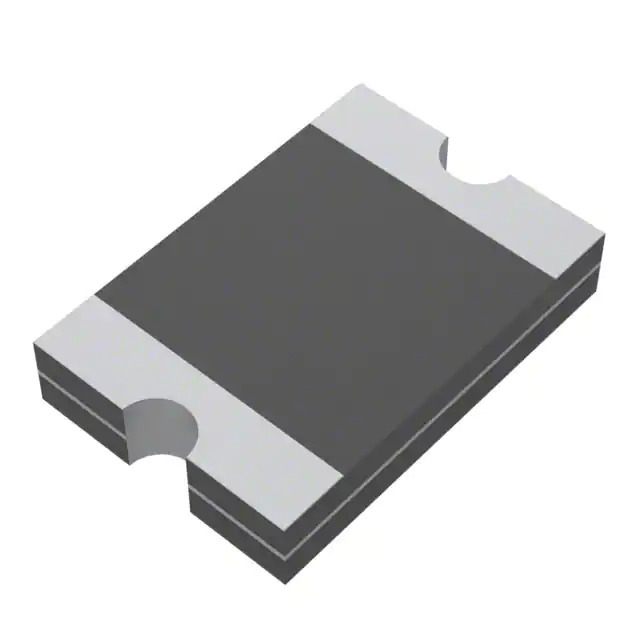

Same model may have multiple batches, images only for reference.

SMD1812B150TF/12

Name: SMD1812B150TF/12
Brand: Yageo
SKU: 1361632
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	SMD1812B150TF/12
Manufacturer	Yageo
Catalog	PTC Resettable Fuses
Description	POLYMERIC PTC RESETTABLE FUSE SU / Polymeric PTC Resettable Fuse 12V 1.5 A Ih Surface Mount 1812 (4532 Metric), Concave
Datasheet	SMD1812B150TF/12 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Circuit Protection - PTC Resettable Fuses
Mfr	YAGEO
Series	SMD1812
Package	Tape & Reel
Product Status	Active
Type	Polymeric
Voltage - Max	12V
Current - Hold (Ih) (Max)	1.5 A
Current - Trip (It)	3 A
Current - Max	100 A
Time to Trip	500 ms
Resistance - Initial (Ri) (Min)	40 mOhms
Resistance - Post Trip (R1) (Max)	120 mOhms
Temperature Range - Operating	-40°C ~ 85°C
Ratings	-
Mounting Type	Surface Mount
Package / Case	1812 (4532 Metric), Concave
Size / Dimension	0.179" L x 0.128" W (4.55mm x 3.24mm)
Height - Seated (Max)	-
Thickness (Max)	0.071" (1.80mm)
Lead Spacing	-
Approval Agency	cUL, TUV, UL
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8533.40.8070
Win Source Part Number	1361632-SMD1812B150TF/12
Ultra Librarian 3D Model	Ultra Librarian SMD1812B150TF/12 CAD Model

Alternative Products

Description

The SMD1812B150TF/12 is a polymeric PTC resettable fuse designed for circuit protection by YAGEO.

Operating Temperature: -40°C to 85°C
Maximum Current: 100A
Voltage Rating: 12V
Package: SMD1812
Dimensions: 0.179" L x 0.128" W (4.55mm x 3.24mm) x 0.071" (1.80mm)
Initial Resistance: 40 mOhms
Post-Trip Resistance: 120 mOhms
Time to Trip: 500ms
Current Trip: 3A
Approvals: cUL, TUV, UL
Product Status: Active
