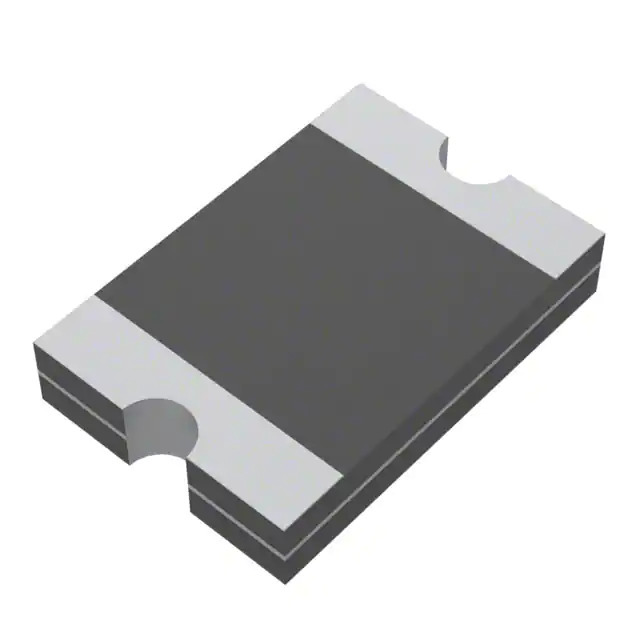

Same model may have multiple batches, images only for reference.
SMD1812B150TF/24 Yageo
Same model may have multiple batches, images only for reference.

SMD1812B150TF/24

Part No SMD1812B150TF/24
Manufacturer Yageo
Catalog PTC Resettable Fuses
Description PPTC SMD 1812, 24V 1.5A, REEL 7" / Polymeric PTC Resettable Fuse 24V 1.5 A Ih Surface Mount 1812 (4532 Metric), Concave
Datasheet
SMD1812B150TF/24 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - PTC Resettable Fuses
Mfr YAGEO
Series SMD1812
Package Tape & Reel
Product Status Active
Type Polymeric
Voltage - Max 24V
Current - Hold (Ih) (Max) 1.5 A
Current - Trip (It) 3 A
Current - Max 20 A
Time to Trip 1.5 s
Resistance - Initial (Ri) (Min) 40 mOhms
Resistance - Post Trip (R1) (Max) 120 mOhms
Temperature Range - Operating -40°C ~ 85°C
Ratings -
Mounting Type Surface Mount
Package / Case 1812 (4532 Metric), Concave
Size / Dimension 0.179" L x 0.128" W (4.55mm x 3.24mm)
Height - Seated (Max) -
Thickness (Max) 0.083" (2.10mm)
Lead Spacing -
Approval Agency cUL, TUV, UL
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8533.40.8070
Win Source Part Number 1361604-SMD1812B150TF/24
Ultra Librarian 3D Model Ultra Librarian SMD1812B150TF/24 CAD Model

Description

The YAGEO 1361604-SMD1812B150TF/24 is a polymeric PTC resettable fuse component.

  • Manufacturer: YAGEO
  • Product: 1361604-SMD1812B150TF/24
  • Packaging: Tape & Reel
  • Mounting Type: Surface Mount
  • Operating Temperature: -40°C to 85°C
  • MSL: 1 (Unlimited)
  • Series: SMD1812
  • Size / Dimension: 0.179" L x 0.128" W (4.55mm x 3.24mm)
  • Thickness (Max): 0.083" (2.10mm)
  • Current - Max: 20 A
  • Voltage - Max: 24V
