Same model may have multiple batches, images only for reference.

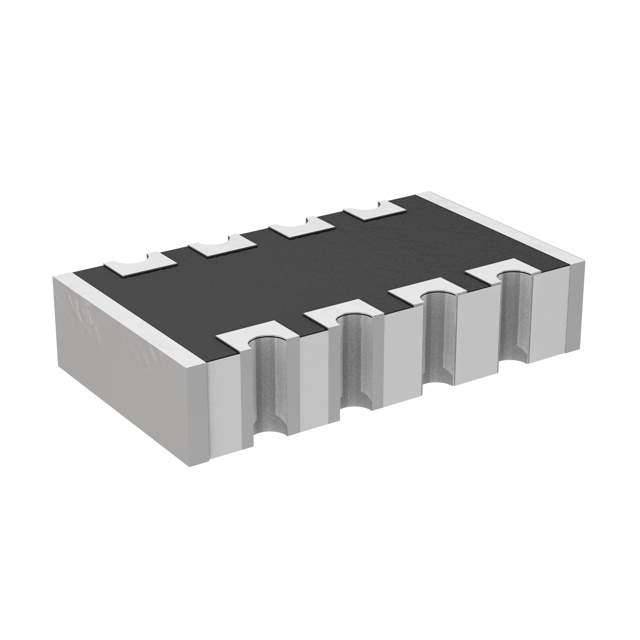

TC164-JR-071KL Real Image
Same model may have multiple batches, images only for reference.

TC164-JR-071KL

Part No TC164-JR-071KL
Manufacturer Yageo
Catalog Resistor Networks, Arrays
Description RES ARRAY 4 RES 1K OHM 1206 / 1k Ohm ±5% 62.5mW Power Per Element Isolated 4 Resistor Network/Array ±200ppm/°C 1206 (3216 Metric), Concave, Long Side Terminals
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Resistor Networks, Arrays
Manufacturer Yageo
Packaging Reel - TR
Circuit Type Isolated
Resistance (Ohms) 1k
Tolerance ±5%
Number of Resistors 4
Number of Pins 8
Power Per Element 62.5mW
Temperature Coefficient ±200ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Applications Automotive AEC-Q200, DDRAM, SDRAM
Mounting Surface Mount
Case / Package 1206 (3216 Metric), Concave, Long Side Terminals
Size / Dimension 0.126" L x 0.063" W (3.20mm x 1.60mm)
Height - Seated (Max) 0.028" (0.70mm)
Base Product Number TC164-JR
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0020
Other Part Number TC164J-1.0KTR,TC164JR071KL,TC164J-1.0KDKR,TC164J-1.0KCT
Standard Package 5,000
Win Source Part Number 1328263-TC164-JR-071KL
Ultra Librarian 3D Model Ultra Librarian TC164-JR-071KL CAD Model

Description

The TC164-JR-071KL is a resistor network array from Yageo.

  • Resistance: 1k ohms
  • Circuit Type: Isolated
  • Number of Resistors: Four
  • Number of Pins: Eight
  • Power Per Element: 62.5mW
  • Mounting Type: Surface Mount
  • Packaging: Reel - TR
  • Size/Dimension: 0.126" L x 0.063" W (3.20mm x 1.60mm)
  • Height Seated (Max): 0.028" (0.70mm)
  • Tolerance: ±5%
  • Temperature Coefficient: ±200ppm/°C
  • Operating Temperature Range: -55°C to 155°C
  • ROHS3 Compliant: Yes
