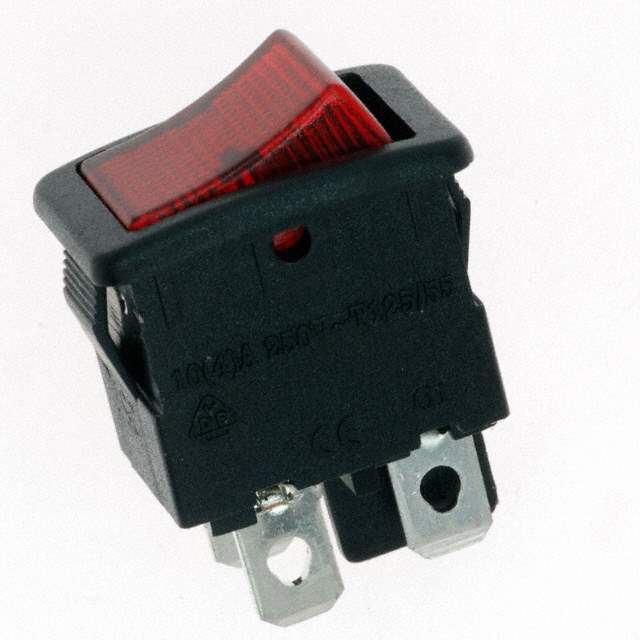

LRA32H2BBRLN Real Image
Same model may have multiple batches, images only for reference.

LRA32H2BBRLN

Part No LRA32H2BBRLN
Manufacturer ZF Electronics
Catalog Rocker Switches
Description SWITCH ROCKER DPST 10A 125V / Rocker Switch DPST 10A (AC) 125 V Panel Mount, Snap-In
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Rocker Switches
Manufacturer ZF Electronics
Packaging Bulk
Mounting Panel Mount, Snap-In
Circuit DPST
Switch Function On-Off
Current Rating (Amps) 10A (AC)
Voltage Rating - AC 125 V
Actuator Type Concave (Curved) - Illuminated
Color - Actuator/Cap Red
Actuator Marking No Marking
Illumination Type, Color Neon, Red
Illumination Voltage (Nominal) 125 VAC
Termination Style Quick Connect - 0.187" (4.7mm)
Panel Cutout Dimensions Rectangular - 19.10mm x 12.90mm
Temperature Range - Operating -20°C ~ 65°C
Mechanical Life 100,000 Cycles
Electrical Life 6,000 Cycles
Base Product Number LRA32H2B
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.9065
Other Part Number 2266-LRA32H2BBRLN,CH773
Standard Package 1,000
Win Source Part Number 1323836-LRA32H2BBRLN
Ultra Librarian 3D Model Ultra Librarian LRA32H2BBRLN CAD Model

Description

The ZF Electronics Rocker Switches electronic component, with the Win Source Part Number 1323836-LRA32H2BBRLN, is a DPST circuit switch.

  • Termination Style: Quick Connect 0.187 inches
  • Voltage Rating: 125 V AC
  • Actuator Type: Concave (Curved)
  • Illumination: Neon Red Color
  • Electrical Life: 6,000 cycles
  • Mechanical Life: 100,000 cycles
  • ROHS: ROHS3 Compliant
  • ECCN: EAR99
