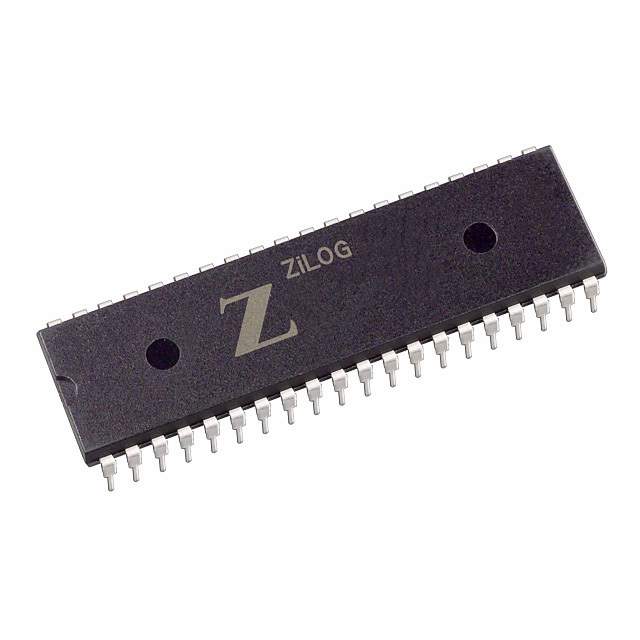

Z86C9116PSC Real Image
Same model may have multiple batches, images only for reference.

Z86C9116PSC

Part No Z86C9116PSC
Manufacturer Zilog
Catalog Embedded - Microcontrollers
Description IC MCU 8BIT ROMLESS 40DIP / MCU 8-bit Z8 CISC ROMLess 5V 40-Pin PDIP
Datasheet
Z86C9116PSC Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Manufacturer Zilog
Series Z8
Packaging Tube
Part Status Obsolete(EOL)
Core Processor Z8
Core Size 8-Bit
Speed 16MHz
Connectivity UART/USART
Number of I/O 24
Program Memory Type ROMless
RAM Size 236 x 8
Supply Voltage 4.5 V ~ 5.5 V
Oscillator Type Internal
Operating Temperature Range 0°C ~ 70°C (TA)
Package 40-DIP (0.620", 15.75mm)
Win Source Part Number 800265-Z86C9116PSC
Popularity Medium
Supply and Demand Status Limited
Quantity per package 10
Family Name Z86C91
Introduction Date May 10, 1999
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian Z86C9116PSC CAD Model

Description

The Zilog Z86C9116PSC is a 8-bit microcontroller with a 16MHz speed and a Z8 core processor.

  • Package Size: 40-DIP (0.620", 15.75mm)
  • Temperature Range: 0°C to 70°C (TA)
  • RAM Size: 236 x 8
  • I/O Numbers: 24
  • Connectivity: UART/USART
  • Oscillator Type: Internal
  • Package Type: Tube
  • Family Name: Z86C91
  • Obsolete: Yes
  • Quantity per package: 10
