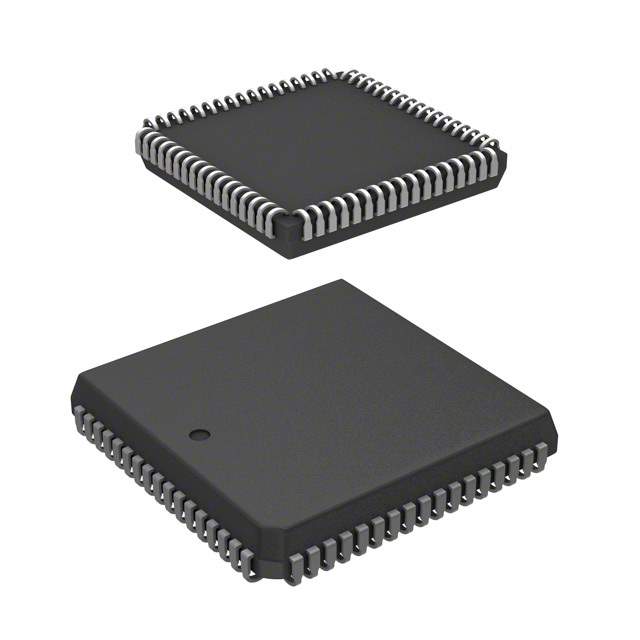

Z8F2422VS020EC Real Image
Same model may have multiple batches, images only for reference.

Z8F2422VS020EC

Part No Z8F2422VS020EC
Manufacturer Zilog
Catalog Embedded - Microcontrollers
Description High Performance 8-Bit Microcontrollers Z8 Encore-R 64K Series | IC MCU 8BIT 24KB FLASH 68PLCC
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Zilog
Packaging Tube
Status Obsolete
Core Processor eZ8
Data Bus Width 8-Bit
Speed 20MHz
Connectivity I2C, IrDA, SPI, UART/USART
Peripherals Brown-out Detect/Reset, DMA, POR, PWM, WDT
The number of I/O 46
Program Memory Size 24KB (24K x 8)
Program Memory Type FLASH
Date RAM Size 2K x 8
Supply Voltage 3V ~ 3.6V
Data Converters A/D 12x10b
Temperature Range - Operating -40°C ~ 105°C
Mounting Style SMD
Manufacturer Package 68-LCC
Family Part Number Z8F2422
Manufacturer Pack Quantity 20
MSL Level 3 (168 Hours)
Win Source Part Number 1282829-Z8F2422VS020EC
Manufacturer Homepage www.zilog.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian Z8F2422VS020EC CAD Model

Description

The Zilog 596287 is an obsolete integrated circuit with a core processor of eZ8 and a speed of 20MHz. It has connectivity options of I2C, IrDA, SPI, UART/USART and peripherals of brown-out detect/reset, DMA, POR, PWM, WDT. The program memory size is 24KB (24K x 8) and the program memory type is FLASH. The data converters are A/D 12x10b and the supply voltage is 3V ~ 3.6V. The data bus width is 8-Bit and the number of I/O is 46. The date RAM size is 2K x 8. The manufacturer package is 68-LCC and the MSL level is 3 (168 Hours). The supply and demand status is limited.
