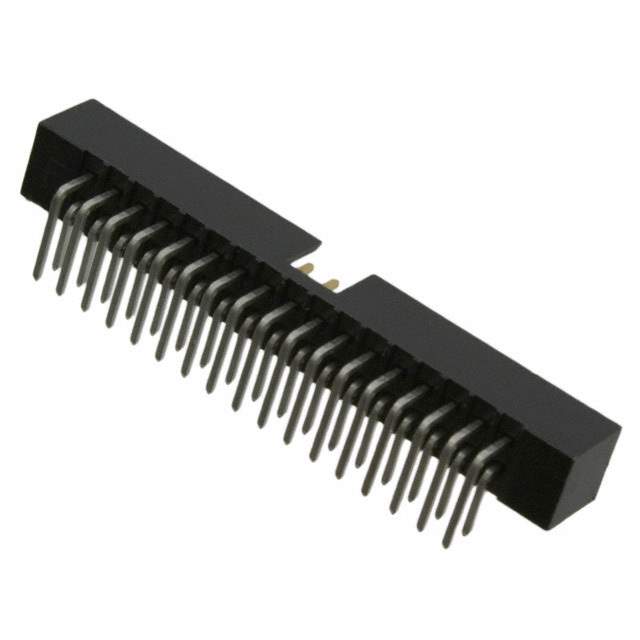

Part No 957234-5002-AR
Manufacturer 3M
Catalog Rectangular Connectors
Description CONN HEADER R/A 34POS 2MM / Connector Header Through Hole, Right Angle 34 position 0.079" (2.00mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr 3M
Series 957
Package Tray
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.079" (2.00mm)
Number of Positions 34
Number of Rows 2
Row Spacing - Mating 0.079" (2.00mm)
Number of Positions Loaded All
Style Board to Board
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole, Right Angle
Termination Solder
Fastening Type Push-Pull
Contact Length - Post 0.118" (3.00mm)
Insulation Height 0.217" (5.51mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating Flash
Contact Finish - Post Tin
Contact Material Copper Alloy
Insulation Material Thermoplastic
Features Keying Slot
Temperature Range - Operating -40°C ~ 105°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating (Amps) 1A
Contact Finish Thickness - Post 39.4µin (1.00µm)
Base Product Number 957234
Standard Package 288
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1349311-957234-5002-AR
Ultra Librarian 3D Model Ultra Librarian 957234-5002-AR CAD Model

Description

The 3M Connector is a male pin commonly used in electronic components.

  • Supply and Demand Status: Balanced
  • Number of Positions: 34
  • Keying: Keying Slot
  • Connector Type: Header
  • Contact Gender: Male Pin
  • Positions Loaded: All
  • Number of Rows: Two
  • Termination Method: Solder
  • Fastening Type: Push-Pull
  • Package: Tray
  • Standard Package: 288
  • Shrouded: 4 Wall
  • Row Spacing: 0.079" (2.00mm)
  • Contact Finish - Mating: Gold, Flash
  • Contact Finish - Post: Tin, 39.4µin (1.00µm)
  • Insulation Color: Black
  • Mounting Type: Through Hole, Right Angle
