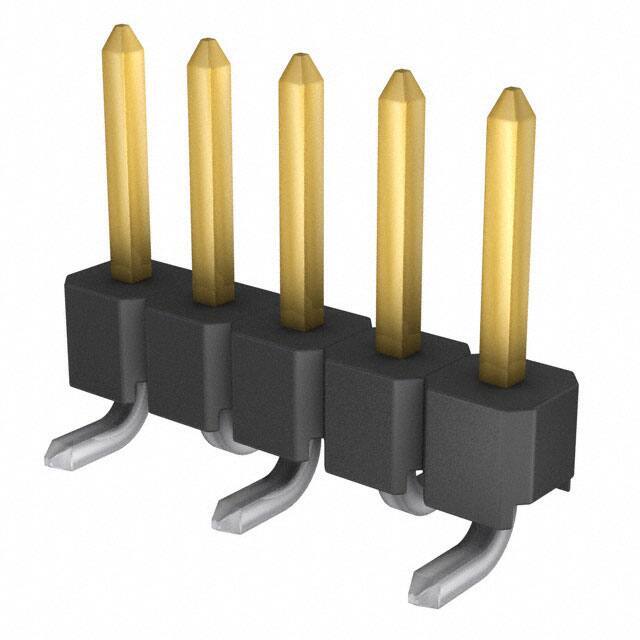

Same model may have multiple batches, images only for reference.

961105-6300-AR-PR

Name: 961105-6300-AR-PR
Brand: 3M
SKU: 908775
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	961105-6300-AR-PR
Manufacturer	3M
Catalog	Rectangular Connectors
Description	CONN HEADER SMD 5POS 2.54MM / Connector Header Surface Mount 5 position 0.100" (2.54mm)
Sample
Rohs State	Need to verify
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr	3M
Series	961
Package	Tape & Reel
Product Status	Obsolete
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.100" (2.54mm)
Number of Positions	5
Number of Rows	1
Number of Positions Loaded	All
Style	Board to Board
Shrouding	Unshrouded
Mounting Type	Surface Mount
Termination	Solder
Fastening Type	Push-Pull
Contact Length - Mating	0.210" (5.33mm)
Insulation Height	0.098" (2.50mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	Flash
Contact Finish - Post	Tin
Contact Material	Copper Alloy
Insulation Material	Thermoplastic
Features	Pick and Place
Temperature Range - Operating	-25°C ~ 105°C
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Current Rating (Amps)	2A
Contact Finish Thickness - Post	39.4µin (1.00µm)
Base Product Number	961105
Standard Package	350 pcs
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	908775-961105-6300-AR-PR
Ultra Librarian 3D Model	Ultra Librarian 961105-6300-AR-PR CAD Model

Alternative Products

Description

The 3M 961105-6300-AR-PR is a male pin header connector from the 961 series.

Positions: 5
Mounting Type: surface mount
Pitch: 0.100 inches (2.54mm)
Termination: solder
Fastening Type: push-pull
Contact Material: copper alloy
Contact Finish: gold
Voltage Rating: -
Current Rating: 2A
Flammability Rating: UL94 V-0
Temperature Range: -25°C to 105°C
Package: tape & reel
Standard Package: 350 pieces
Status: obsolete
Manufacturer: 3M
