Same model may have multiple batches, images only for reference.

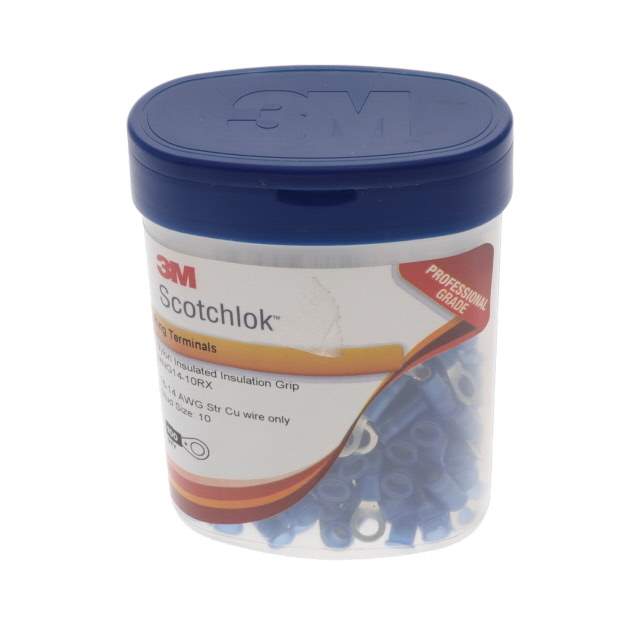

MNG14-10RX-BOTTLE Real Image
Same model may have multiple batches, images only for reference.

MNG14-10RX-BOTTLE

Part No MNG14-10RX-BOTTLE
Manufacturer 3M
Catalog Terminals
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Terminals - Ring Connectors
Mfr 3M
Series Scotchlok™
Package Bulk
Terminal Type Circular
Stud/Tab Size 10 Stud
Thickness 0.030" (0.76mm)
Width - Outer Edges 0.330" (8.38mm)
Length - Overall 0.910" (23.11mm)
Mounting Type Free Hanging (In-Line)
Termination Crimp
Wire Gauge 14-16 AWG
Insulation Insulated
Color Blue
Contact Material Copper, ETP
Contact Finish Tin
Insulation Diameter 0.170" (4.32mm)
Material - Insulation Polyamide (PA), Nylon
Base Product Number MNG14
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.90.4000
Win Source Part Number 1316242-MNG14-10RX-BOTTLE
Ultra Librarian 3D Model Ultra Librarian MNG14-10RX-BOTTLE CAD Model

Description

The Scotchlok™ 1316242-MNG14-10RX-BOTTLE is a blue ring connector designed for use in electrical applications.

  • Termination Style: Crimp
  • Material: Copper, ETP
  • Insulation Material: Polyamide (PA), Nylon
  • Terminal Type: Circular
  • Thickness: 0.030" (0.76mm)
  • Width: 0.330" (8.38mm)
  • Overall Length: 0.910" (23.11mm)
  • Insulation Diameter: 0.170" (4.32mm)
  • Wire Gauge: 14-16 AWG
  • Mounting Type: Free Hanging (In-Line)
  • Manufacturer: Scotchlok™
This connector is insulated and is ideal for use in a range of applications.
