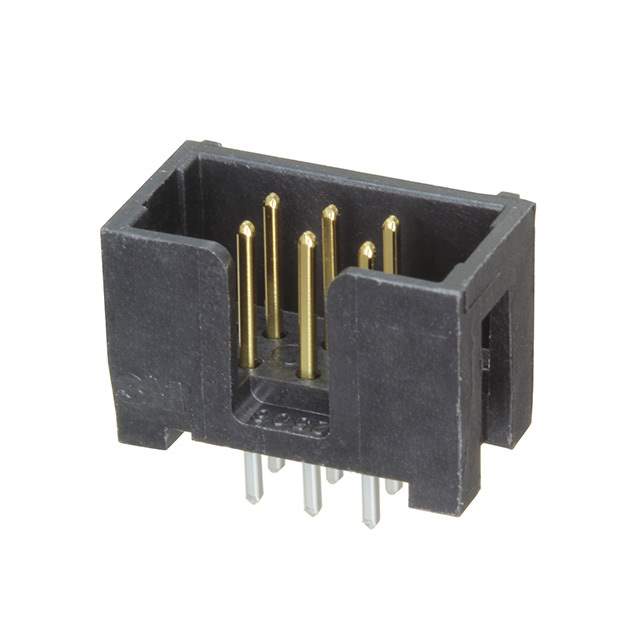

The 3M 2500 series male pin header connector is a through-hole component designed for board-to-board or cable connections.

• Positions Loaded: 6
• Contact Shape: Square
• Termination: Solder
• Material: Copper alloy
• Contact Plating (Mating): Gold
• Contact Plating (Post): Tin
• Insulator Material: Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, and Glass-Filled Material
• Flammability Rating: UL94 V-0
• Pitch: 0.100" (2.54mm)
• Row Spacing: 0.100" (2.54mm)
• Contact Length (Mating): 0.243" (6.17mm)
• Contact Length (Post): 0.112" (2.84mm)
• Operating Temperature: -55°C to 105°C
• Current Rating: 1.75A
• Package: Bulk
• Standard Package: 1,064
