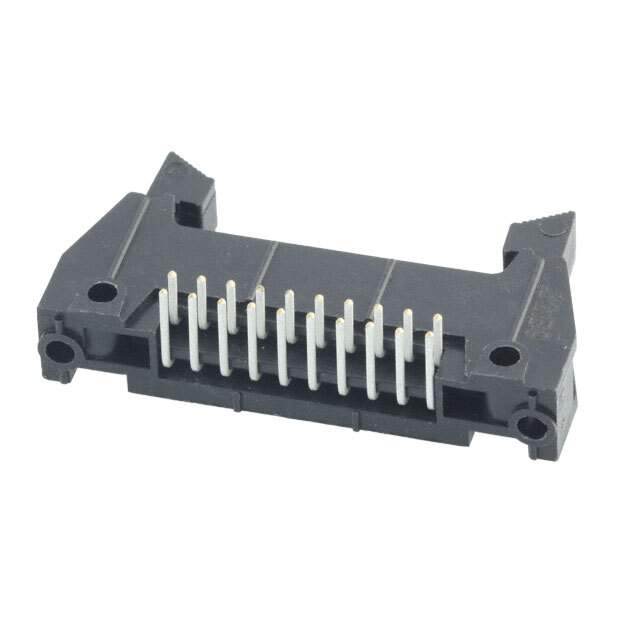

N3428-5202RB Real Image
Same model may have multiple batches, images only for reference.

N3428-5202RB

Part No N3428-5202RB
Manufacturer 3M
Catalog Rectangular Connectors
Description CONN HEADER R/A 20POS 2.54MM / Connector Header Through Hole, Right Angle 20 position 0.100" (2.54mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Manufacturer 3M
Packaging Bulk
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.100" (2.54mm)
Number of Positions 20
Number of Rows 2
Row Spacing - Mating 0.100" (2.54mm)
Number of Positions Loaded All
Style Board to Board or Cable
Shrouding Shrouded - 4 Wall
Mounting Through Hole, Right Angle
Termination Solder
Fastening Type Latch Lock/Eject Hooks, Short
Contact Length - Mating 0.240" (6.10mm)
Contact Length - Post 0.112" (2.84mm)
Insulation Height 0.340" (8.64mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 30.0µin (0.76µm)
Contact Finish - Post Tin
Contact Material Copper Alloy
Insulation Material Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled
Features Keying Slot, Mounting Flange
Temperature Range - Operating -55°C ~ 105°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating (Amps) 1.75A
Contact Finish Thickness - Post 200.0µin (5.08µm)
Base Product Number N3428
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number 80400031656,51119948615,51111627570,5111994861,80001137571,00051119948615,XP700003658,N3428-5502RB-ND,5111162757,7000057649,N3428-5502RB,05111162757,05111994861,N3428-5202RB-ND,N34285202RB,00051111627570,MHR20S
Standard Package 300
Win Source Part Number 1332335-N3428-5202RB
Ultra Librarian 3D Model Ultra Librarian N3428-5202RB CAD Model

Description

The 3M N3428-5202RB header male pin connector is a reliable and durable solution for a variety of connector needs.

  • Material: Copper Alloy
  • Contact Finish: Gold
  • Contact Finish Thickness: 30.0μin
  • Pitch Mating: 0.100 inches
  • Packaging: Bulk
  • Standard Package: 300
