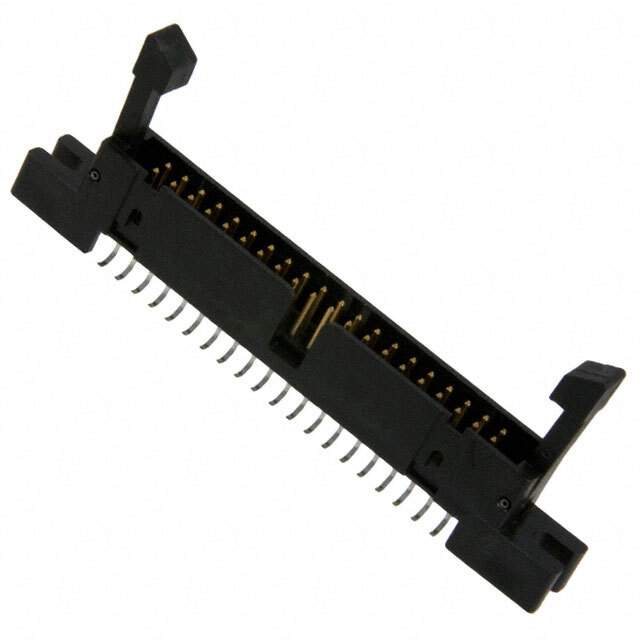

Part No N4640-2300RB
Manufacturer 3M
Catalog Rectangular Connectors
Description CONN HEADER SMD 40POS 2.54MM / Connector Header Surface Mount 40 position 0.100" (2.54mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr 3M
Series N4600
Package Bulk
Product Status Obsolete
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.100" (2.54mm)
Number of Positions 40
Number of Rows 2
Row Spacing - Mating 0.100" (2.54mm)
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Surface Mount
Termination Solder
Fastening Type Latch Lock/Eject Hooks, Long
Contact Length - Mating 0.243" (6.17mm)
Insulation Height 0.525" (13.34mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 30.0µin (0.76µm)
Contact Finish - Post Tin
Contact Material Copper Alloy
Insulation Material Polycyclohexylenedimethylene Terephthalate (PCT) , Polyester, Glass Filled
Features Keying Slot, Mounting Flange
Temperature Range - Operating -55°C ~ 105°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating (Amps) 1.25A
Contact Finish Thickness - Post 300.0µin (7.62µm)
Base Product Number N4640
Standard Package 100
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1346601-N4640-2300RB
Ultra Librarian 3D Model Ultra Librarian N4640-2300RB CAD Model

Description

The N4600 series header male pin connectors from 3M are an ideal solution for your rectangular connector needs.

  • Positions: 40
  • Keying Slot: Yes
  • Mounting Flange: Yes
  • Termination: Solder
  • Application Style: Board to Cable/Wire
  • Contact Material: Copper Alloy
  • Contact Plating: Gold
  • Insulation Material: Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass-Filled, UL94 V-0
  • Shrouded: 4 Wall
  • Latch Type: Latch Lock/Eject Hooks, Long Type
  • Mating Pitch: 0.100" (2.54mm)
  • Contact Finish Thickness: 30.0µin (0.76µm)
  • Temperature Range: -55°C to 105°C
  • Current Rating: 1.25A
