Same model may have multiple batches, images only for reference.

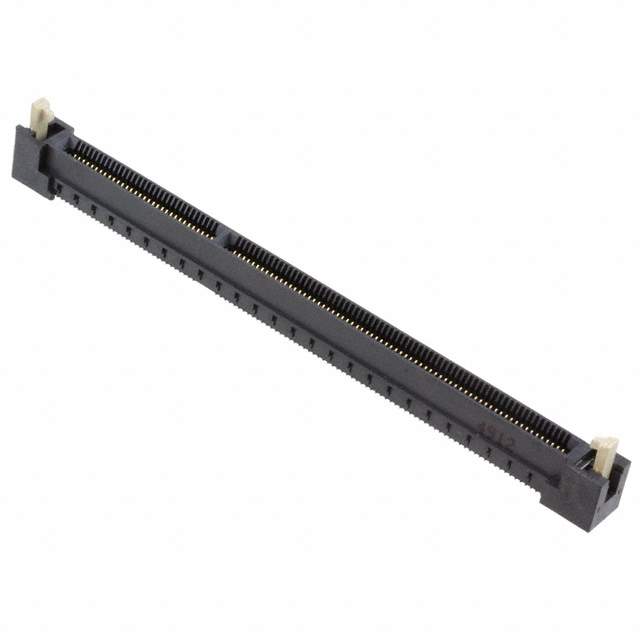

SPD08-200-L-RB-TR Real Image
Same model may have multiple batches, images only for reference.

SPD08-200-L-RB-TR

Part No SPD08-200-L-RB-TR
Manufacturer 3M
Catalog Card Edge Connectors - Edgeboard Connectors
Datasheet
SPD08-200-L-RB-TR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Card Edge Connectors - Edgeboard Connectors
Mfr 3M
Series SPD08
Card Type Non Specified - Dual Edge
Gender Female
Number of Positions 200
Card Thickness 0.062" (1.57mm)
Number of Rows 2
Pitch 0.031" (0.80mm)
Read Out Dual
Features Board Guide, Latches
Mounting SMD (SMT)
Termination Solder
Contact Material Copper Alloy
Contact Finish Gold
Contact Finish Thickness 30.0µin (0.76µm)
Contact Type Cantilever
Color Black
Temperature Range - Operating -55°C ~ 125°C
Material - Insulation Liquid Crystal Polymer (LCP), Glass Filled
Base Product Number SPD08
Other Names 3M12044DKR,3M12044DKR,3M12044DKRINACTIVE,SPD08200LRBTR,3M12044TR
Standard Package 300
MSL Level 1 (Unlimited)
ECCN EAR99
Win Source Part Number 1294253-SPD08-200-L-RB-TR
Ultra Librarian 3D Model Ultra Librarian SPD08-200-L-RB-TR CAD Model

Description

The SPD08-200-L-RB-TR is a female card edge connector from 3M.

  • Positions: 200
  • Pitch: 0.031 inches
  • Features: Board guide and latches
  • Contact Type: Cantilever
  • Termination: Solder
  • Contact Finish: Gold with a thickness of 30.0µin
  • Contact Material: Copper Alloy
  • Insulation Material: Liquid Crystal Polymer (LCP) and glass filled
  • Operating Temperature: -55°C to 125°C
  • Card Type: Non-specified dual edge card types
  • Mounting Type: Surface Mount Technology (SMT)
