Same model may have multiple batches, images only for reference.

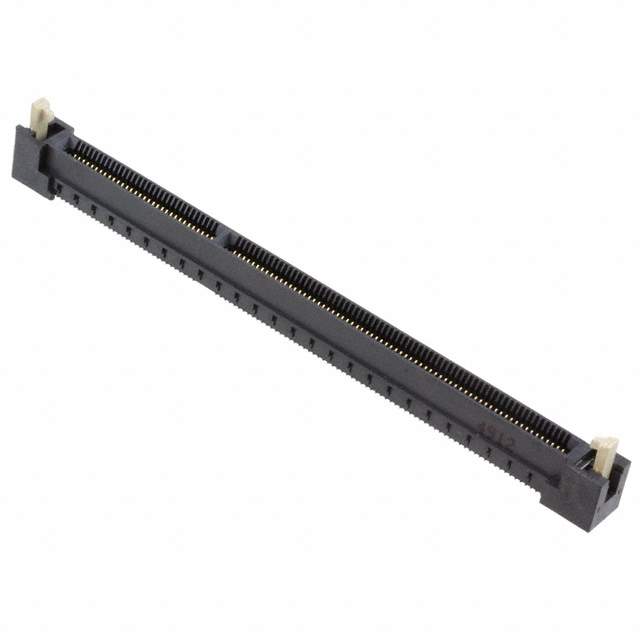

SPD08-200-L-RB Real Image
Same model may have multiple batches, images only for reference.

SPD08-200-L-RB

Part No SPD08-200-L-RB
Manufacturer 3M
Catalog Card Edge Connectors - Edgeboard Connectors
Datasheet
SPD08-200-L-RB Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Card Edge Connectors - Edgeboard Connectors
Mfr 3M
Series SPD08
Package Tray
Card Type Non Specified - Dual Edge
Gender Female
Number of Positions 200
Card Thickness 0.062" (1.57mm)
Number of Rows 2
Pitch 0.031" (0.80mm)
Read Out Dual
Features Board Guide, Latches
Mounting SMD (SMT)
Termination Solder
Contact Material Copper Alloy
Contact Finish Gold
Contact Finish Thickness 30.0µin (0.76µm)
Contact Type Cantilever
Color Black
Temperature Range - Operating -55°C ~ 125°C
Material - Insulation Liquid Crystal Polymer (LCP), Glass Filled
Base Product Number SPD08
Other Names SPD08200LRB,00076308602659,3M12044CT,07630860265,XF003826898,3M12044,3M12044CT,SPC08-200-L-RB-TR
Standard Package 300
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1294249-SPD08-200-L-RB
Ultra Librarian 3D Model Ultra Librarian SPD08-200-L-RB CAD Model

Description

The 3M SPD08-200-L-RB is a dual-edge card connector that has 200 positions and a pitch of 0.031 inches.

  • Positions: 200
  • Pitch: 0.031 inches
  • Color: Black
  • Features: Latches and board guides
  • Contact Type: Cantilever
  • Contact Finish: Gold with a thickness of 30.0µin
  • Contact Material: Copper Alloy
  • Insulation Material: Liquid Crystal Polymer (LCP), Glass-Filled
  • Gender: Female
  • Mounting Type: Surface Mount
  • Temperature Range: -55°C to 125°C
