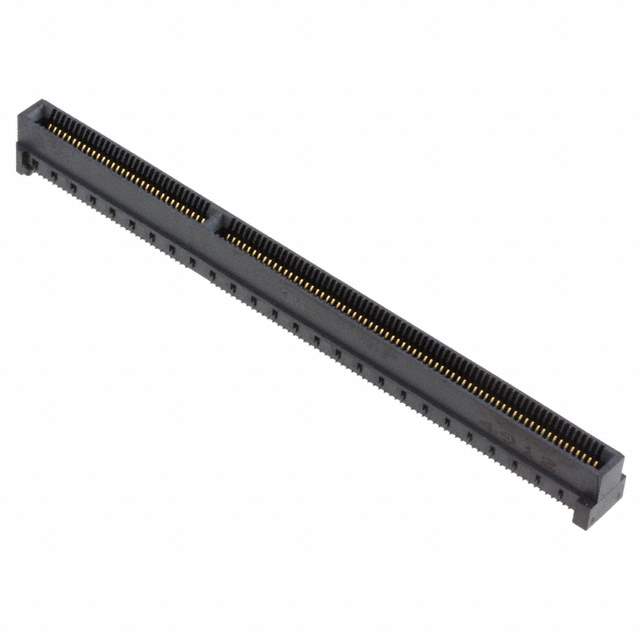

SPD08-200-RB-TR Real Image
Same model may have multiple batches, images only for reference.

SPD08-200-RB-TR

Part No SPD08-200-RB-TR
Manufacturer 3M
Catalog Card Edge Connectors - Edgeboard Connectors
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Card Edge Connectors - Edgeboard Connectors
Mfr 3M
Series SPD08
Card Type Non Specified - Dual Edge
Gender Female
Number of Positions 200
Card Thickness 0.062" (1.57mm)
Number of Rows 2
Pitch 0.031" (0.80mm)
Read Out Dual
Features Board Guide
Mounting SMD (SMT)
Termination Solder
Contact Material Copper Alloy
Contact Finish Gold
Contact Finish Thickness 30.0µin (0.76µm)
Contact Type Cantilever
Color Black
Temperature Range - Operating -55°C ~ 125°C
Material - Insulation Liquid Crystal Polymer (LCP), Glass Filled
Base Product Number SPD08
Other Names 3M12045DKR,SPD08200RBTR,3M12045DKRINACTIVE,3M12045TR,3M12045DKR
Standard Package 600
MSL Level 1 (Unlimited)
ECCN EAR99
Win Source Part Number 1294254-SPD08-200-RB-TR
Ultra Librarian 3D Model Ultra Librarian SPD08-200-RB-TR CAD Model

Description

The SPD08-200-RB-TR is a dual edge, female card edge connector manufactured by 3M.

  • Contact Type: Cantilever
  • Positions: 200
  • Pitch: 0.031 inches
  • Feature: Board guide
  • Termination: Solder
  • Contact Finish: Gold with a thickness of 30.0µin
  • Contact Material: Copper Alloy
  • Insulation Material: Liquid Crystal Polymer (LCP), glass filled
  • Mountable: SMD (SMT)
  • Temperature Range: -55°C to 125°C
  • Package: Includes 600 connectors
