Part No 529802B02500G
Manufacturer Aavid Thermalloy
Catalog Thermal - Heat Sinks

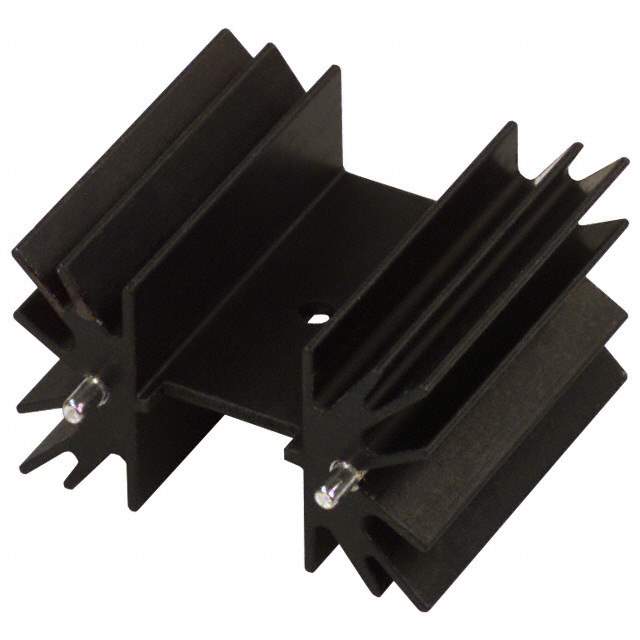

Description HEATSINK TO-220 W/PINS 1.5"TALL  /  Heat Sink TO-220 Aluminum 10.0W @ 50°C Board Level, Vertical
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Fans, Thermal Management>Thermal - Heat Sinks
Mfr Aavid, Thermal Division of Boyd Corporation
Package Bulk
Type Board Level, Vertical
Package Cooled TO-220
Attachment Method Bolt On and PC Pin
Shape Rectangular, Fins
Length 1.000" (25.40mm)
Width 1.650" (41.91mm)
Fin Height 1.500" (38.10mm)
Power Dissipation @ Temperature Rise 10.0W @ 50°C
Thermal Resistance @ Forced Air Flow 3.00°C/W @ 200 LFM
Thermal Resistance @ Natural 3.70°C/W
Material Aluminum
Material Finish Black Anodized
Base Product Number 529802
MSL Level Not Applicable
ECCN EAR99
HTSUS 8473.30.5100
Other Names 041553,HS350
Standard Package 250
Win Source Part Number 1203384-529802B02500G
Ultra Librarian 3D Model Ultra Librarian 529802B02500G CAD Model

Description

The Aavid Thermal Division of Boyd Corporation presents a high-quality heat sink that is perfect for thermal management.

  • Material: Aluminum
  • Finish: Black anodized
  • Shape: Rectangular with fins
  • Package: TO-220
  • Thermal Resistance (Forced Air): 3.00°C/W
  • Thermal Resistance (Natural Flow): 3.70°C/W
  • Power Dissipation: 10.0W @ 50°C temperature rise
  • Attachment: Bolt on and PC pin
  • Mounting Level: Vertical
  • Length: 1.000" (25.40mm)
  • Width: 1.650" (41.91mm)
  • Alternative: 529802B02500G
