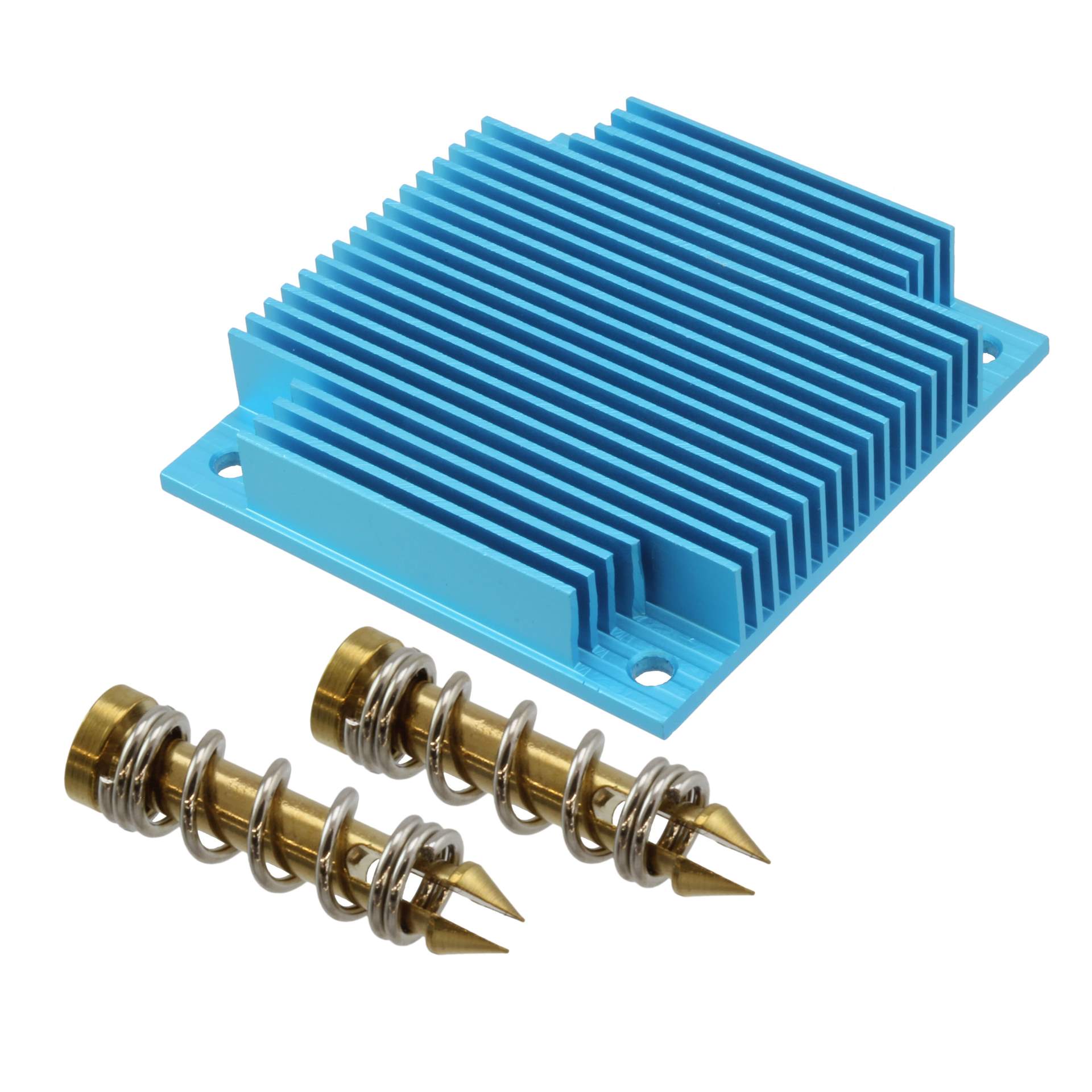

ATS-15C-40-C1-R0

Part No ATS-15C-40-C1-R0
Manufacturer Advanced Thermal Solutions Inc.
Catalog Thermal - Heat Sinks
Description HEATSINK 57.9X60.96X11.43MM
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Fans, Thermal Management
Manufacturer Advanced Thermal Solutions Inc.
Status Active
Type Top Mount
Package Cooled Assorted (BGA, LGA, CPU, ASIC...)
Attachment Method Push Pin
Shape Rectangular, Fins
Length 2.280" (57.90mm)
Width 2.400" (60.96mm)
Height Off Base (Height of Fin) 0.450" (11.43mm)
Thermal Resistance @ Forced Air Flow 14.55°C/W @ 100 LFM
Material Aluminum
Material Finish Blue Anodized
Win Source Part Number 137246-ATS-15C-40-C1-R0
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian ATS-15C-40-C1-R0 CAD Model

Description

Product Overview

The ATS-15C-40-C1-R0 is a versatile thermoelectric cooler designed to manage thermal stability effectively in various applications. Crafted with precision, its compact size ensures easy integration into systems that require efficient heat dissipation.

Features and Benefits

  • High-quality thermoelectric module for efficient cooling performance.
  • Compact design suitable for space-constrained applications.
  • Reliable and durable construction ensures long-term functionality.
  • Simple installation and maintenance process.

Applications and Projects

  • Electronics cooling systems
  • Precision temperature control in medical devices
  • Thermal management in computer hardware
  • Environmental chambers and testing equipment

Additional Details

With a focus on energy efficiency, the ATS-15C-40-C1-R0 helps reduce operational costs while providing optimal thermal management solutions across various industrial scenarios.
