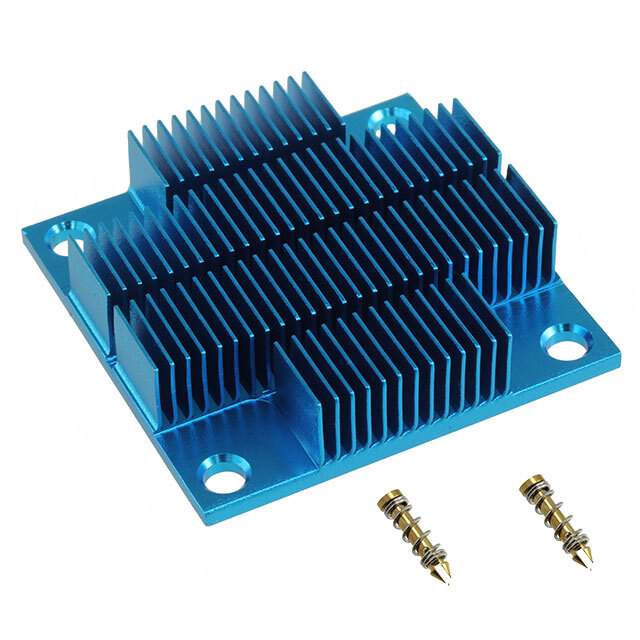

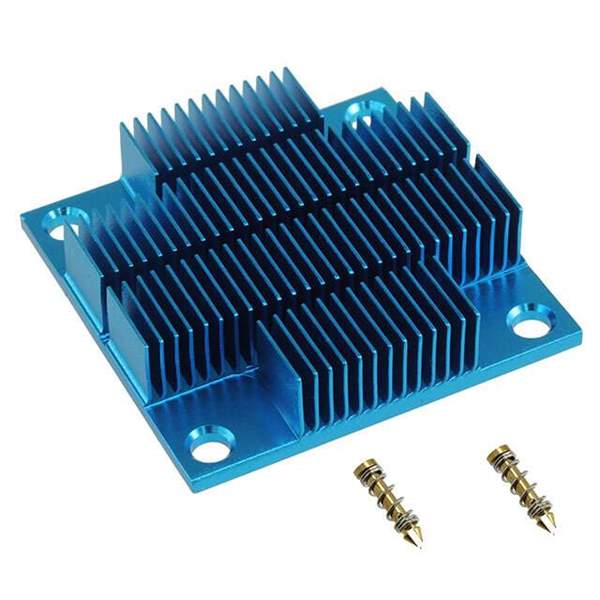

ATS-20F-55-C1-R0

Part No ATS-20F-55-C1-R0
Manufacturer Advanced Thermal Solutions Inc.
Catalog Thermal - Heat Sinks
Description HEATSINK 35X35X10MM L-TAB
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Fans, Thermal Management
Manufacturer Advanced Thermal Solutions Inc.
Status Active
Type Top Mount
Package Cooled Assorted (BGA, LGA, CPU, ASIC...)
Attachment Method Push Pin
Shape Square, Fins
Length 1.378" (35.00mm)
Width 1.378" (35.00mm)
Height Off Base (Height of Fin) 0.394" (10.00mm)
Thermal Resistance @ Forced Air Flow 23.94°C/W @ 100 LFM
Material Aluminum
Material Finish Blue Anodized
Win Source Part Number 106368-ATS-20F-55-C1-R0
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian ATS-20F-55-C1-R0 CAD Model

Description

Product Overview

The ATS-20F-55-C1-R0 is crafted for high efficiency in thermal regulation tasks, offering superior cooling for a wide range of modern electronics. Its design ensures that devices operate within optimal temperature ranges.

Key Features & Benefits

  • High-Efficiency Cooling: Ensures optimal device performance.
  • Innovative Design: Fits snugly in compact setups.
  • Reliable Materials: Built to withstand rigorous environmental conditions.

Applications

  • Automotive Electronics
  • Home Appliance Cooling Systems
  • Data Center Equipment

Additional Details

This component is engineered for maximum thermal efficiency, providing a reliable solution for complex electronic applications.
