ATS-15D-201-C1-R0

Part No ATS-15D-201-C1-R0
Manufacturer Advanced Thermal Solutions Inc.
Catalog Thermal - Heat Sinks

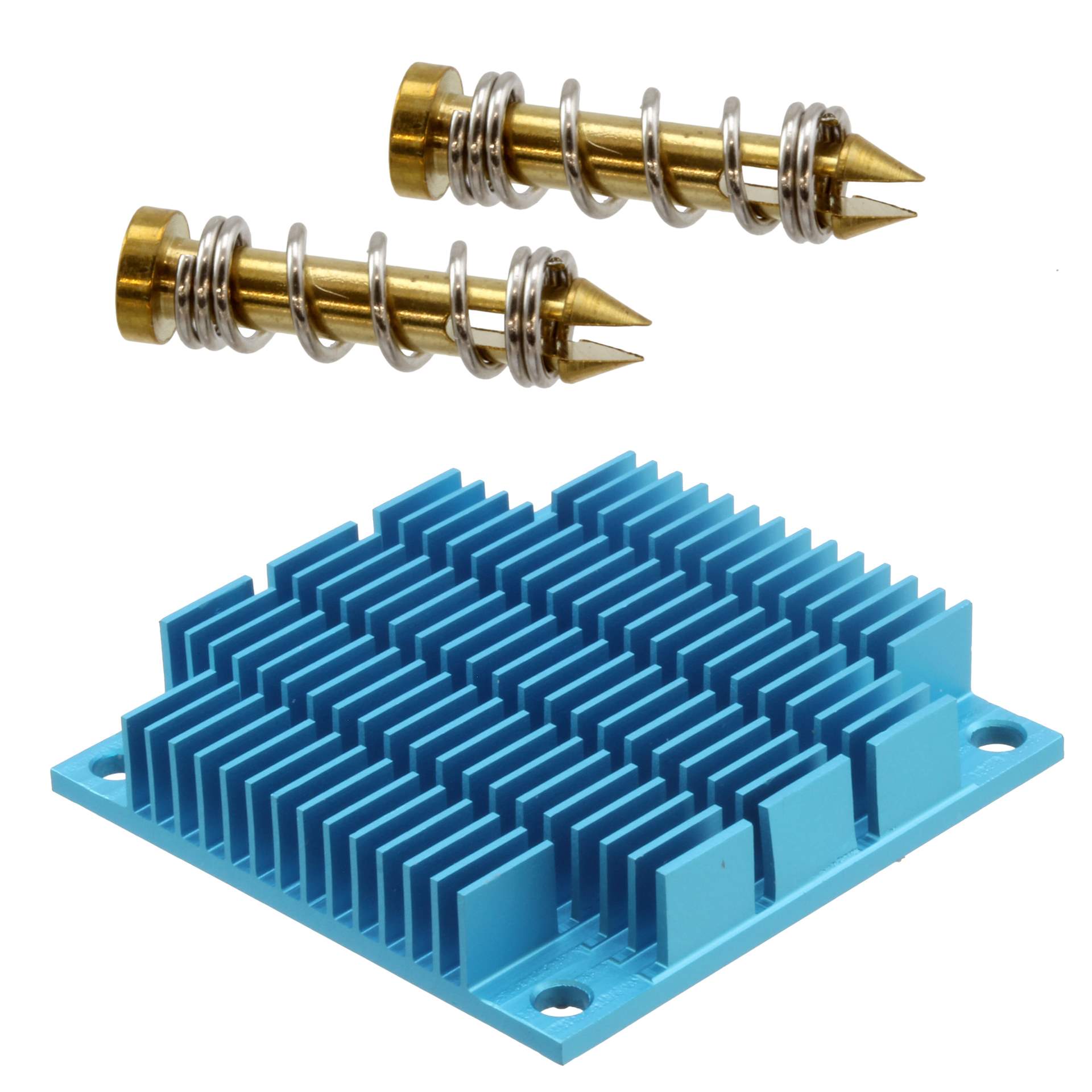

Description HEATSINK 50X50X12MM XCUT
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Fans, Thermal Management
Manufacturer Advanced Thermal Solutions Inc.
Status Active
Type Top Mount
Package Cooled Assorted (BGA, LGA, CPU, ASIC...)
Attachment Method Push Pin
Shape Square, Fins
Length 1.969" (50.00mm)
Width 1.969" (50.00mm)
Height Off Base (Height of Fin) 0.472" (12.00mm)
Thermal Resistance @ Forced Air Flow 8.15°C/W @ 100 LFM
Material Aluminum
Material Finish Blue Anodized
Win Source Part Number 106836-ATS-15D-201-C1-R0
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian ATS-15D-201-C1-R0 CAD Model

Description

Product Overview

The ATS-15D-201-C1-R0 offers robust thermal management capabilities, ideal for environments where precise temperature control is essential. It employs advanced thermoelectric technology to achieve reliable cooling performance.

Features and Benefits

  • Advanced thermoelectric technology for superior cooling.
  • Designed for demanding applications requiring precision.
  • Rugged construction for harsh environments.
  • Low power consumption for cost-effective operations.

Applications and Projects

  • Telecommunication equipment cooling
  • Laboratory and research equipment
  • Military and aerospace systems
  • Industrial temperature control solutions

Additional Details

This model is especially popular in sectors that demand unwavering quality and reliability, offering peace of mind in critical situations where thermal regulation is non-negotiable.
